7-Inch Touchscreen Keypad Installation & Programming
7-Inch Touchscreen Keypad Installation & Programming
Breadcrumbs

DMP Wireless Communication

Procedure

  1. Check the Panel Firmware

  2. Program the Panel

  3. Select a Location

  4. Power the Keypad

  5. Mount the Keypad

  6. Connect to Network

  7. Program the Keypad

  8. Update the Keypad Firmware

Note: DMP Wireless is not compatible with OSDP.

1. Check the Panel Firmware

To use the most up to date keypad features available, ensure your panel has been updated to the latest firmware version.

Need to check your firmware version?

Check Remotely

To find the firmware version for a panel remotely, navigate to Dealer Admin, select Customer, and look at the Version associated with the system.

Check Remotely

To find the firmware version on the panel, select your panel model below.

XR150/XR550

To see the firmware version in an XR150/XR550, complete the following:

  1. Press CMD on the keypad until you see MENU? YES NO. Select YES to access the User Menu.

  2. Enter a valid user code and press CMD.

  3. Press CMD until SYSTEM STATUS? displays. Press any select key or area.

  4. Press CMD to advance through the System Status options until the Firmware Version displays.

  5. To exit, press the Back Arrow.

XT75

To see the firmware version in an XT75, complete the following:

  1. Press CMD on the keypad until you see MENU? YES NO. Select YES to access the User Menu.

  2. Enter a valid user code and press CMD.

  3. Press CMD until SYSTEM STATUS? displays. Press any select key or area.

  4. Press CMD to advance through the System Status options until the Firmware Version displays.

  5. To exit, press the Back Arrow.

XT30/XT50

To see the firmware version in an XT30/XT50, complete the following:

  1. Reset the panel using the RESET jumper.

  2. Enter 2313 (DIAG) in the keypad.

  3. Press CMD to advance through the Diagnostics options until PANEL SETTINGS displays. Press any select key or area to enter.

  4. Press CMD to advance until the Firmware Version displays.

  5. To exit, press the Back Arrow.

XTLplus/XTLtouch

To see the firmware version in an XTLplus/XTLtouch, complete the following:

  1. Reset the panel using the RESET jumper.

  2. Enter 2313 (DIAG) in the keypad.

  3. Press CMD to advance through the Diagnostics options until PANEL SETTINGS displays. Press any select key or area to enter.

  4. Press CMD to advance until the Firmware Version displays.

  5. To exit, press the Back Arrow.

Need to update your panel?

Follow the steps below to update your panel firmware remotely from Dealer Admin:

  1. Navigate to Dealer Admin.

  2. Select the customer and system.

  3. In the menu, click System Remote Update.

  4. If you want to view the update details before updating, click the PDF icon next to View Release Notes.

  5. Click Update System. If you go to a different page, the system continues to update in the background.

  6. After the system has updated, the Panel Name, Firmware Version, and Date Code updates at the top of the page.

2. Program the Panel

To allow the control panel to recognize and communicate with the keypad, program the keypad as a device in the panel Programmer Menu.

Need help accessing the Programmer Menu?

  1. Reset the panel by shorting the RESET header.

  2. Press Keypad in the Carousel menu, then enter 6653 (PROG). Press CMD.

  3. Press CMD to advance to the next option in the menu.

  4. To exit the Programmer menu, select CMD to advance through the menu items until you reach STOP at the end of the menu. Select STOP to return to the main screen.

After completing each of the step, press CMD to advance to the next option. Refer to the panel programming guide as needed.

Device Setup

DEVICE SETUP

Device Setup

Advance to DEVICE SETUP, then press a select area to enter the setup menu.

DEVICE SETUP
DEVICE NO: -

Device Number

Set the keypad address.

Panel Model

Compatible Device Numbers

XR550

2-16

XR150

2-8

XT75

2-8

XT30/XT50

2-8

XTLplus

2-8

XTLtouch

2-8

Note: XR550 Control Panels only support 7 wireless keypads on a single system.

DEVICE SETUP
*UNUSED*

Device Name

Enter a name for the device.

DEVICE SETUP
TYPE: KEYPAD

Device Type

For use as a standard keypad, select KPD. For use as an access control keypad, select DOOR.

DEVICE SETUP
COMM TYPE: WLS

Communication Type

Select WLS.

DEVICE SETUP
SERIAL#: -

Serial Number

Enter the eight-digit wireless serial number. Range is 14500000-14999999.

DEVICE SETUP
SUPERVSN TIME: 240

Supervision Time

Press any select area and choose a supervision time. Options are 0, 60, or 240 minutes.


3. Select a Location

Before permanently installing the keypad, perform a wireless survey to verify reliable communication with the wireless receiver or panel. Because the keypad does not provide an LED indicator for evaluating wireless communication, we recommend using an 1106 Wireless Universal Transmitter to survey the proposed keypad location.

1106 LED Survey

The 1106 offers a one-person test using a Survey LED to confirm communication with the wireless receiver or panel. The 1106 needs to be programmed into the panel using a programming keypad on the panel keypad bus, or in Dealer Admin (dealer.securecomwireless.com).

Need help programming the 1106?
Program using a Programming Keypad

  1. At a programming keypad, enter 6653 (PROG) to access the Programmer Menu.

  2. Go to ZONE INFORMATION and select the zone number for the 1106.

  3. Enter the ZONE NAME and ZONE TYPE.

  4. At NEXT ZN?, select NO.

  5. At WIRELESS?, select YES.

  6. Enter the 8-digit Serial # and press CMD.

  7. At CONTACT, select INTERNAL.

  8. Enter the SUPRVSN TIME and press CMD.

  9. At DISARM DISABLE, select NO.

  10. At NEXT ZN?, select YES to finish programming.

Using Dealer Admin

  1. Open the customer's system in Dealer Admin.

  2. Go to Zone Information.

  3. Select Add Zone.

  4. Enter the Zone Number and Zone Name.

  5. Select the Zone Type.

  6. Select the Area the zone belongs to.

  7. Enable DMP Wireless.

  8. Enter the 1106's Serial Number.

  9. Configure the remaining zone options as needed.

  10. Select Save.

  11. Select the More icon, then select Send Zone Information to send the programming to the panel.

Complete the following steps to perform an LED Survey:

  1. After you have programmed the 1106 into the panel, remove the cover of the 1106 to access the Survey LED and tamper switch.

  2. Hold the 1106 where you intend to place the keypad.

  3. Press the tamper switch to send data to the panel and determine if communication is confirmed or faulty.

Confirmed: If the LED flashes once when you press the tamper switch and once when you release the tamper switch, communication is confirmed.

Repeat this five times to ensure you see two flashes during each press-and-release of the button. Five tests should result in 10 flashes of the LED.

Faulty: If the LED remains on for about 8 seconds or flashes multiple times in quick succession when you press or release the switch, communication is faulty.

Relocate the 1106 or wireless receiver until the LED confirms clear communication.

For additional help completing the LED Survey and to see an example of confirmed or faulty results, refer to this video: 1100 Series Programming and LED Survey. The LED Survey walkthrough begins at 1 minute and 30 seconds.

4. Power the Keypad

Caution: Disconnect all power before wiring. Failure to do so may result in equipment damage or injury. Observe polarity when making power connections.

When using DMP Wireless, the wireless connection is used for communication, while the keypad is powered separately using the panel or a 12 VDC power source.

Select whether you are wiring using the included 4-wire power harness or a 2-wire power harness (see 300-8860-PWR in Ordering Information), then complete the steps.

  1. Run 18 or 22‑gauge unshielded wire from the power source to the keypad mounting location. See Reference: Keypad Bus Wiring Specification for maximum wire runs.

  2. Refer to the following table as you connect the wires to the power source:

    • Connect the red wire to panel terminal 7 or the power supply’s positive (+) terminal.

    • Connect the black wire to panel terminal 10 or the power supply’s negative (-) terminal.

    • Do not connect the green and yellow wires. Cap or otherwise secure the wires to prevent contact with other conductors.

  3. Plug the power source into an unswitched outlet.

  4. Route the keypad wires through the cutouts in the base. Connect the harness to the PANEL header when accessible during the mounting process. If the harness must be disconnected for mounting, reconnect it after the keypad is secured.

Harness Wire

Terminal

Purpose

Red

Terminal 7 on Panel OR
Positive Terminal on Power Supply

Power (+12 VDC)

Yellow

Not Used

Send Data

Green

Not Used

Receive Data

Black

Terminal 10 on Panel OR
Negative Terminal on Power Supply

Ground

Note: Cap all unused harness wires individually. Do not leave exposed conductors.

  1. Run 18 or 22‑gauge unshielded wire from the power source to the keypad mounting location. See Reference: Keypad Bus Wiring Specification for maximum wire runs.

  2. Locate the harness wire with the tab on the stripped end. The tab, marked with plus signs (+), identifies the positive wire. The unmarked wire is the negative wire.

  3. Refer to the following table as you connect the wires to the power source:

    • Connect the positive wire to panel terminal 7 or the power supply’s positive (+) terminal.

    • Connect the negative wire to panel terminal 10 or the power supply’s negative (-) terminal.

  4. Plug the power source into an unswitched outlet.

  5. Route the keypad wires through the cutouts in the base. Connect the harness to the PANEL header when accessible during the mounting process. If the harness must be disconnected for mounting, reconnect it after the keypad is secured.

Harness Wire

Terminal

Purpose

Positive

Terminal 7 on Panel OR
Positive Terminal on Power Supply

Power (+12 VDC)

Negative

Terminal 10 on Panel OR
Negative Terminal on Power Supply

Ground

Note: Cap all unused harness wires individually. Do not leave exposed conductors.


5. Mount the Keypad

Mount the 8863 using the included mounting plate or an optional desk stand. The keypad is compatible with the standard mounting plate, desk stand, and the 8863-BACKUP mounting plate or desk stand configuration when a backup battery is installed. To learn more about customization of the 7-Inch Touchscreen Keypad and related items available for order, see Ordering Information.

Note: Regardless of method, ensure you remove the protective plastic film from the screen after installation to help ensure proper keypad operation.

Optional Backup Battery

The 8863 can be equipped with an optional standby backup battery using the 8863-BACKUP kit. The kit includes a standby battery and a battery case with a breakaway wall tamper. The battery case is designed for wall-mounted or desk stand installations.

To use a standby backup battery, first enable Keypad Battery Connected under Installer Options > Keypad Options. To display the keypad power status while operating on the backup battery, also enable Display Power Status. Then proceed with the instructions for your chosen mounting method.

Full Mounting Instructions

Determine how the keypad is going to be mounted, then complete the steps for your mounting style:

Wall Mounting

Wall Mounting

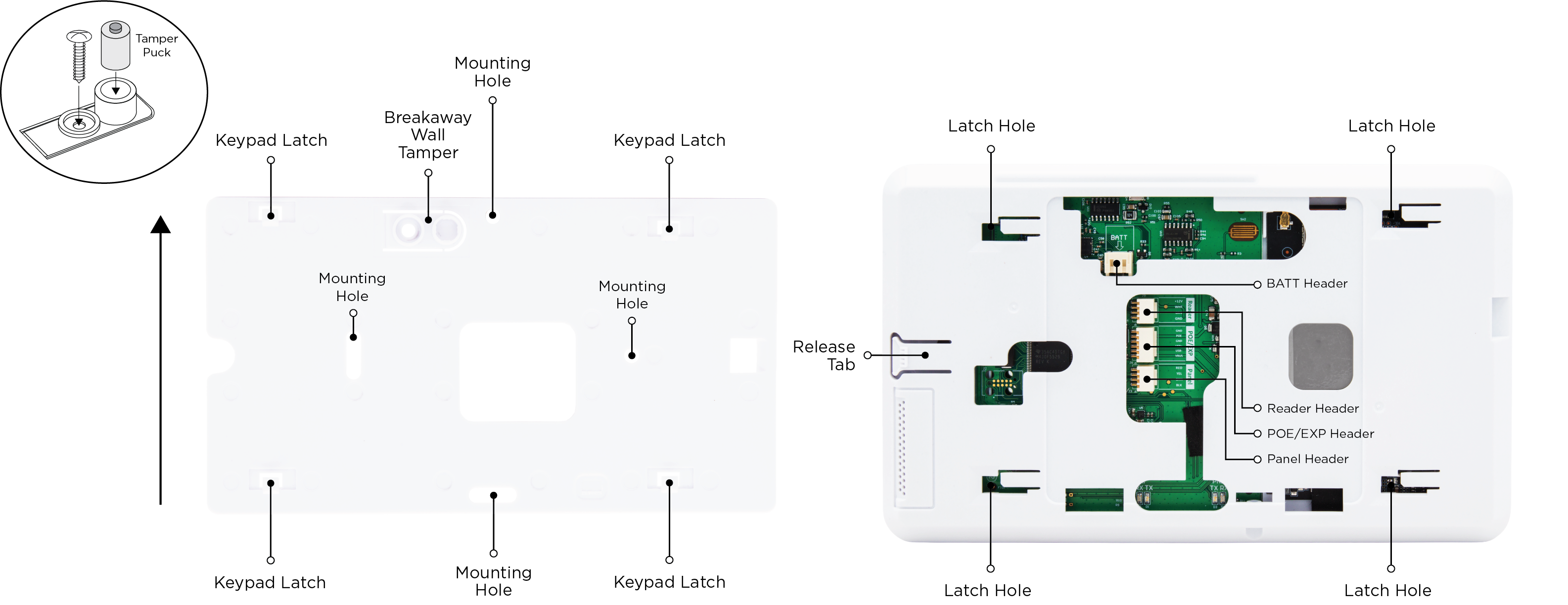

8863 Back and Wall Cover.png
Wall Cover and 8863 Keypad Diagram

To mount a keypad using the mounting plate, refer to the figures and complete the following steps:

  1. Place the keypad mounting plate against the wall at standing height to mark the holes for the mounting screws and tamper screw (if necessary). The breakaway wall tamper should be located at the top of the mounting plate, and the keypad latches should be facing up.

  2. Set the base aside and drill the holes.

  3. Use the screws included in the hardware pack to secure the keypad mounting plate to the wall.

  4. Insert the tamper puck into the breakaway wall tamper.

  5. Plug the 2- or 4-wire harness into the keypad PANEL header to connect it to the power source.

  6. Ensure that the latch holes in the back of the keypad line up with the mounting plate keypad latches and that the on-board camera is on the left, then gently press the keypad to the mounting plate. Slide the keypad to the right until you hear the release tab on the side click to secure it onto the mounting plate.

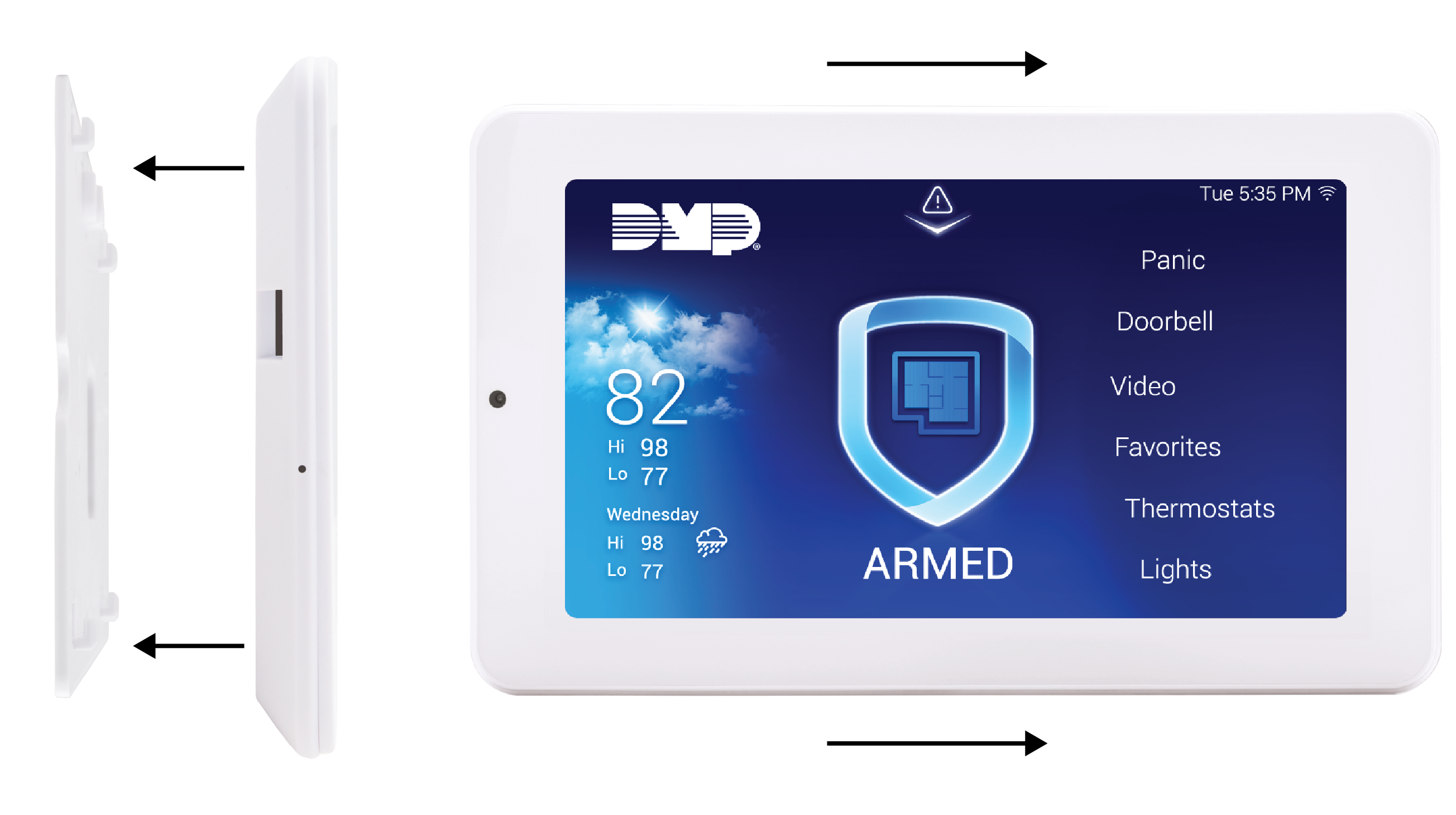

8863 Wall Cover Install.png
Removal

To remove the keypad from the mounting plate, locate the release tab on the right side of the keypad back and press down. This allows you to slide the keypad to the left and lift it away from the mounting plate.

Warning: Ensure that you slide the keypad to the side before pulling it away from the mounting plate. Failure to do so can result in damage to the keypad or mounting plate.

Desk Stand Mounting

Desk Stand Mounting

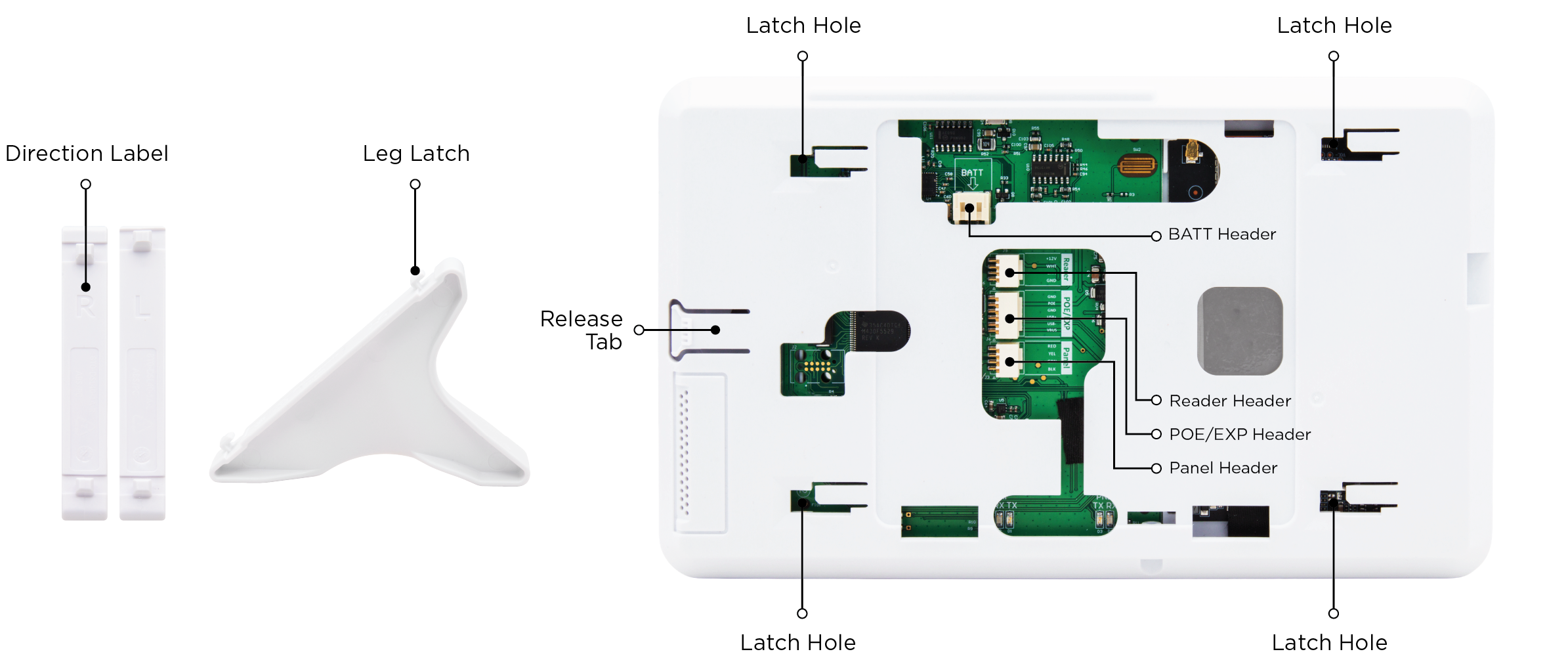

8863 Back and Desk Stand.png

To mount a keypad using the desk stand, refer to the figures and complete the following steps:

  1. Plug the 2- or 4-wire harness into the keypad PANEL header to connect it to the power source.

  2. Locate the latch holes on the back of the keypad.

  3. The desk stand legs are labeled L and R based on the keypad's front view and are not interchangeable due to latch spacing. Insert the desk stand leg marked with an L into the holes on the right side of the keypad, then slide it to the side to lock it in place. Repeat with the desk stand leg marked with an R on the left side of the keypad. The clear, non-slip rubber pads should be pointing down.

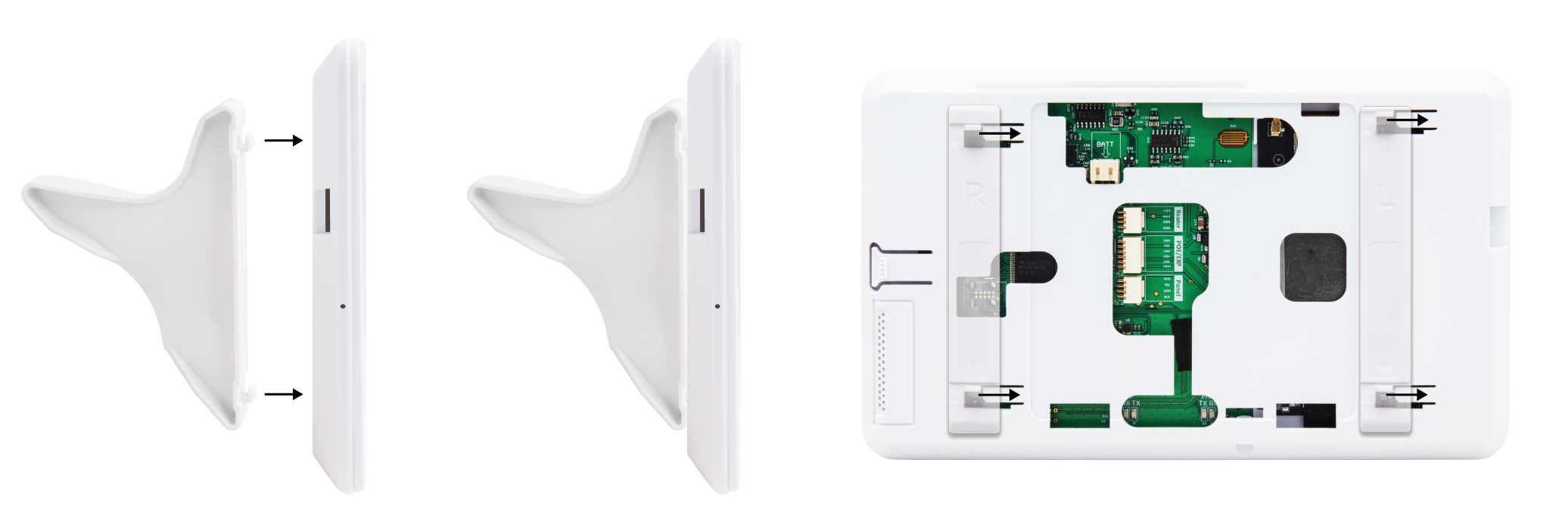

8863 Desk Stand Install.png
Removal

To remove the legs, slide them over and lift them from the holes.

Warning: Ensure that you slide the legs to the side before pulling them away from the keypad. Failure to do so can result in damage to the keypad or desk stand legs.

Wall Mounting with Optional Backup Battery

Wall Mounting

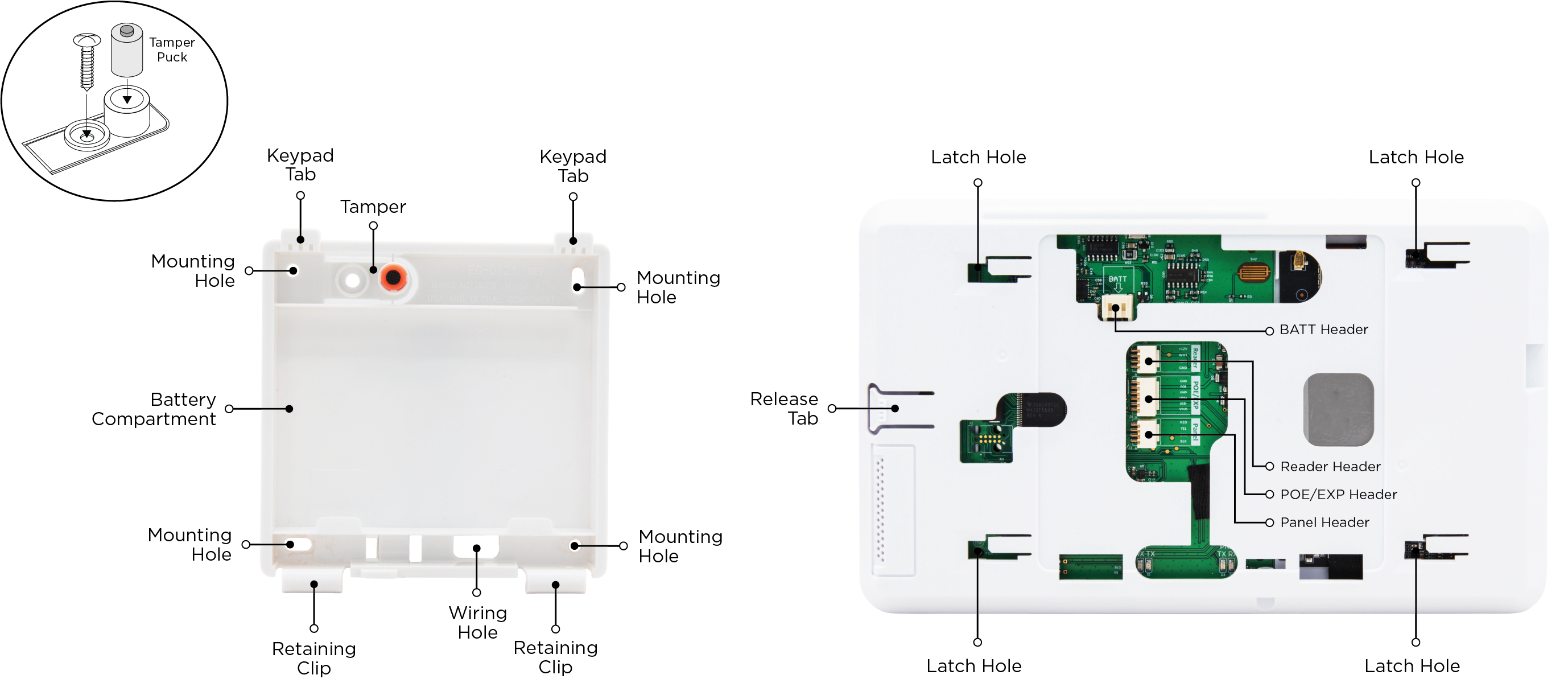

8863 Back and Battery Case.png

The backup battery case can act as a mounting device to install the keypad on a wall, so the included mounting plate is not necessary for this mounting process. To mount an 8863 which utilizes a backup battery on a wall, refer to the figures, and complete the following steps:

  1. Place the battery case against the wall at standing height to mark the holes for the mounting screws and tamper screw (if necessary). The breakaway wall tamper should be at the top of the case.

  2. Set the case aside and drill the holes.

  3. Use the screws included in the hardware pack to secure the case to the wall. Insert the tamper puck into the case.

  4. Pull the 2- or 4-wire harness through the wiring hole. Plug the harness into the PANEL header on the back of the 8863 to connect it to the power source.

  5. Plug the battery into the BATT header on the back of the 8863, then place the battery into the case.

  6. Slot the keypad tab holes over the tabs at the top of the battery case, then lower the keypad until it sits flush against the battery case.

  7. Gently press the bottom of the keypad against the case until the retaining clips click into place.

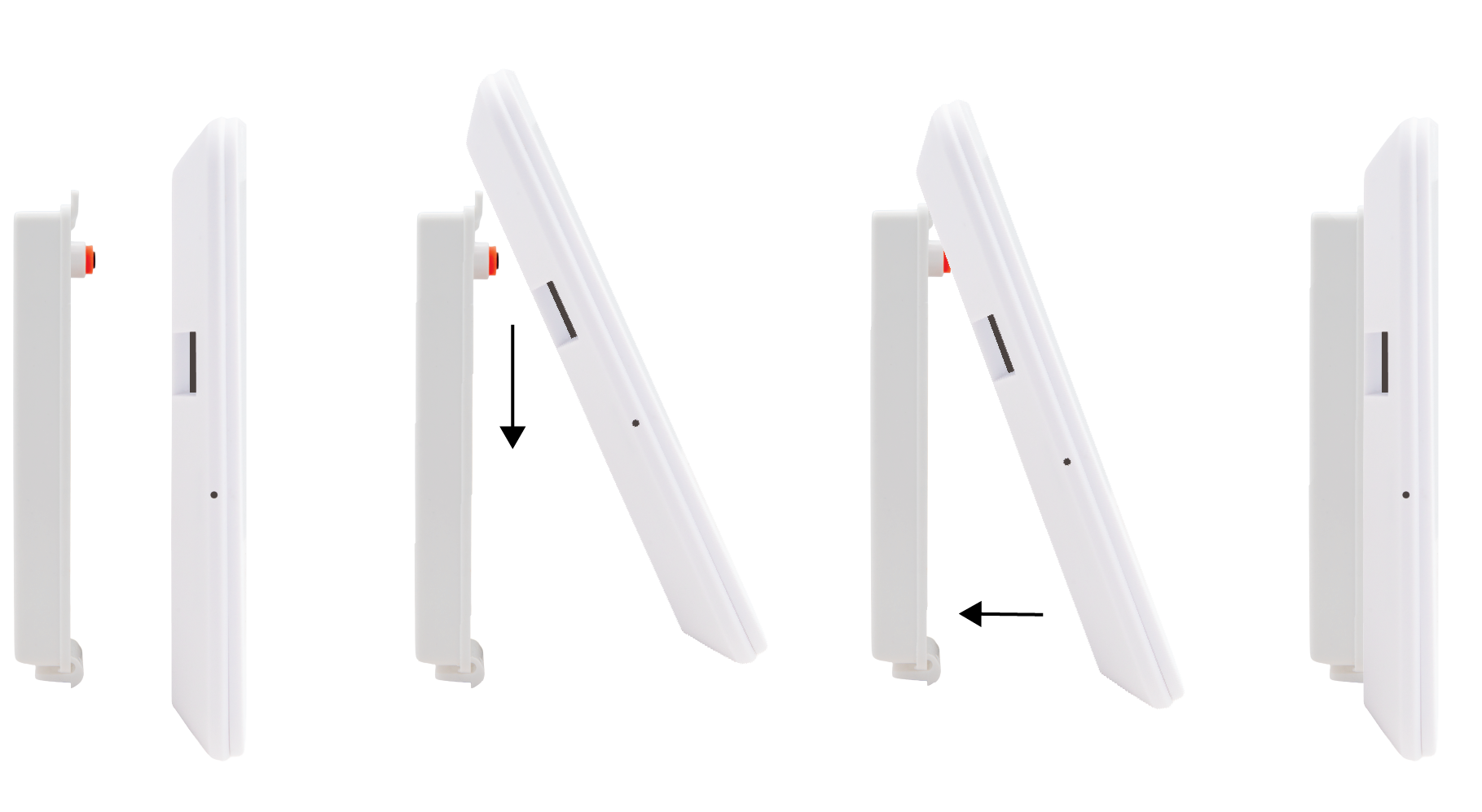

8863 Wall Cover Install with Backup Battery.png
Removal

To remove, press up on the retaining clips until they release. Support the battery while removing the keypad to prevent it from falling out of the battery case. Lift the bottom of the keypad away from the case and raise it straight up to remove the case tabs from the keypad tab holes.

Warning: Ensure that you have maneuvered the keypad up over the tabs and are supporting the battery before pulling it away from the battery case. Failure to do so can result in damage to the keypad, battery, or battery case.

Desk Stand Mounting with Optional Backup Battery

Desk Stand Mounting

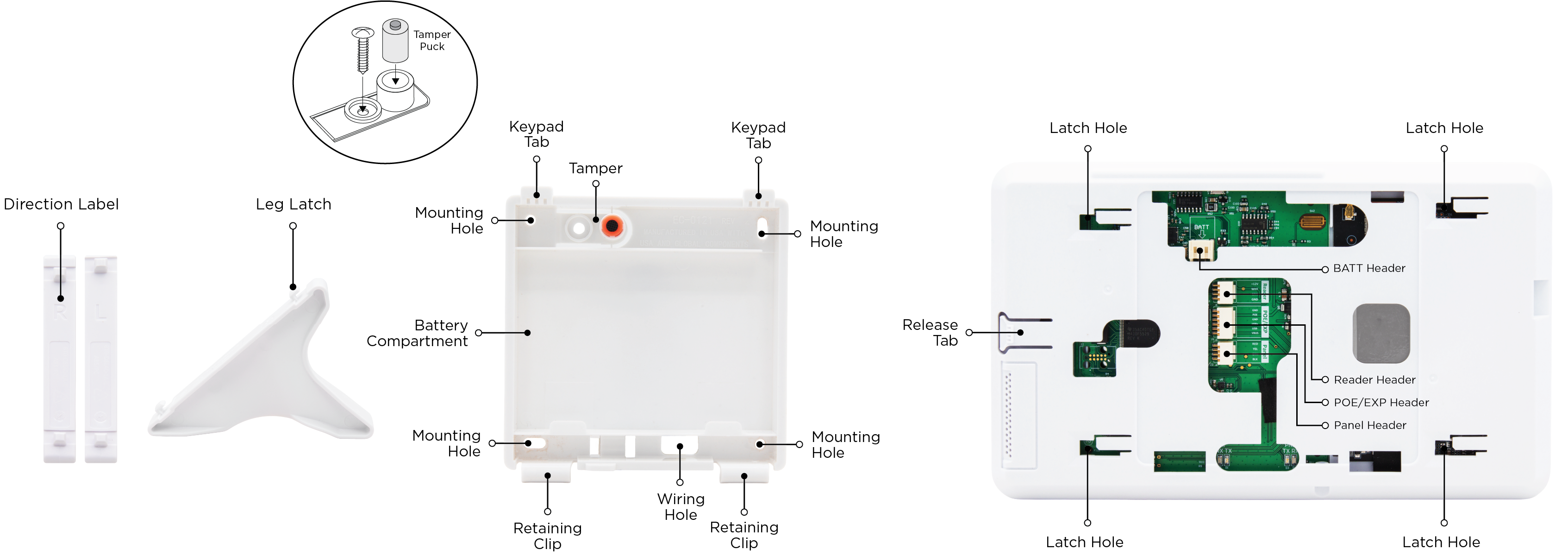

8863 Back and Battery Case and Legs.png

To mount an 8863 which utilizes a backup battery using the desk stand, refer to Figure X, and complete the following steps:

  1. Plug the 2-or 4-wire harness into the PANEL header to connect it to the power source.

  2. Plug the battery into the BATT header on the back of the 8863, then place the battery into the case.

  3. Insert the top tabs of the case into the keypad tab holes. The breakaway wall tamper should be at the top of the case. Lower the case until it sits flush against the back of the keypad.

  4. Gently press the bottom of the case against the keypad until the retaining clips click into place.

  5. Locate the latch holes on the back of the keypad.

  6. The desk stand legs are labeled L and R based on the keypad's front view and are not interchangeable due to latch spacing. Insert the desk stand leg marked with an L into the holes on the right side of the keypad, then slide it to the side to lock it in place. Repeat with the desk stand leg marked with an R on the left side of the keypad. The clear, non-slip rubber pads should be pointing down.

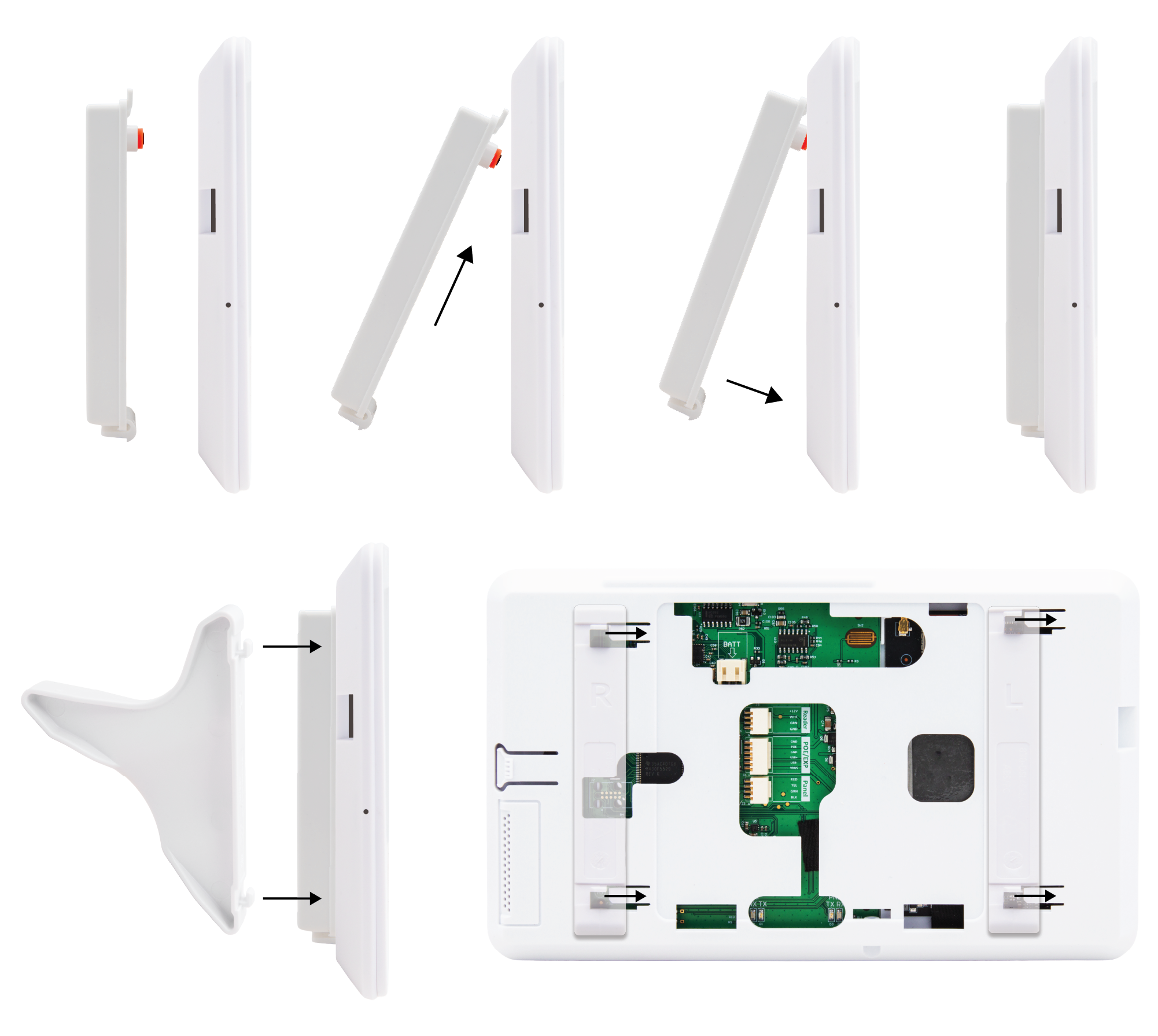

8863 Desk Stand Install with Backup Battery.png
Removal

To remove the legs, slide them over and lift them from the holes.

To remove the battery case, press up on the retaining clips until they release. Support the battery while removing the case to prevent it from falling. Lift the bottom of the case away from the keypad and pull down to remove the case tabs from the keypad tab holes.

Warning: Ensure that you slide the legs to the side before pulling them away from the keypad and confirm that you have maneuvered the keypad up over the tabs and are supporting the battery before pulling it away from the battery case. Failure to do so can result in damage to the keypad, battery, battery case, or desk stand legs.


6. Connect to Network

Connecting the keypad to Wi-Fi provides access to additional 8863 features, including remote updates, video system integration, personalized logos, and image capture when arming and disarming at the keypad. A Wi-Fi connection is recommended for all communication types to ensure access to these enhanced features.

To connect the keypad to Wi-Fi, complete the following:

  1. Select Options from the Carousel menu.

  2. Select Wi-Fi Settings.

  3. Select the Wi-Fi network you would like to connect to.

  4. Enter the password and select CMD.


7. Program the Keypad

Once your keypad is powered, complete the following steps to program the keypad and configure the communication settings:

  1. Select Options in the Carousel Menu.

  2. Select Installer Options, enter 3577 (INST), then press CMD.

  3. Select Panel Communications.

  4. Select DMP Wireless.


8. Update the Keypad

To use the most up to date keypad features available, connect the keypad to Wi-Fi network and update to the latest firmware version. Follow the instructions for your chosen update method below.

Update the Keypad Locally

Update the Keypad Locally

  1. Select Options from the Carousel menu.

  2. Select Installer Options, enter 3577 (INST) and enter CMD.

  3. Select Check for Updates. Follow the on-screen prompts.

Update the Keypad Remotely

Update the Keypad from Dealer Admin

  1. Ensure the keypad is programmed as a Keypad device in Device Setup.

  2. Navigate to Dealer Admin.

  3. Select the Customer and then select the System.

  4. On the left menu, select System Remote Update.

  5. Click Update next to the keypad.

Note: If the keypad does not show on System Remote Update, ensure it is programmed in Device Setup as a Keypad, not a Door.
