Installer Options

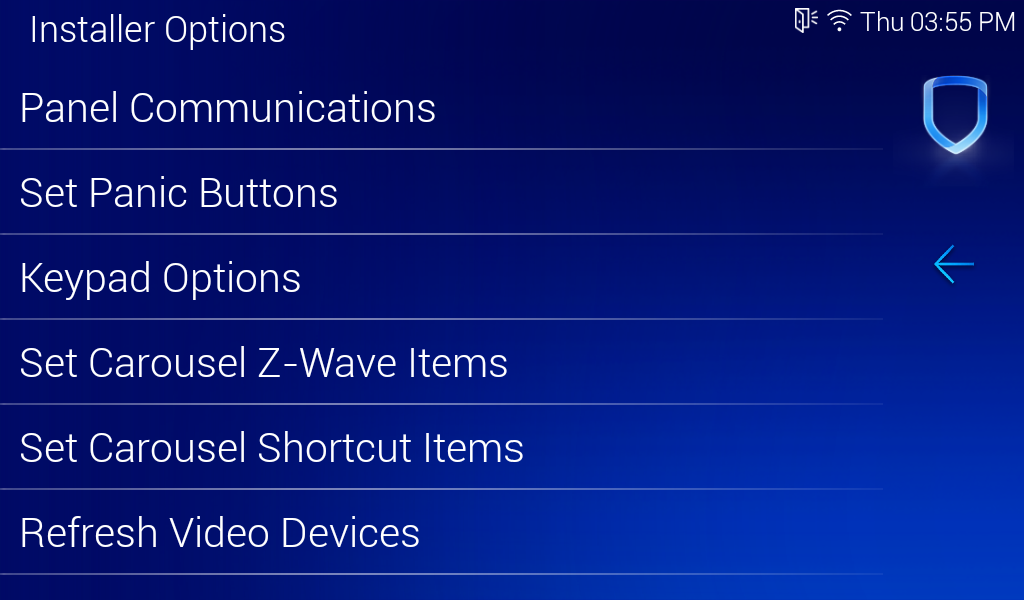

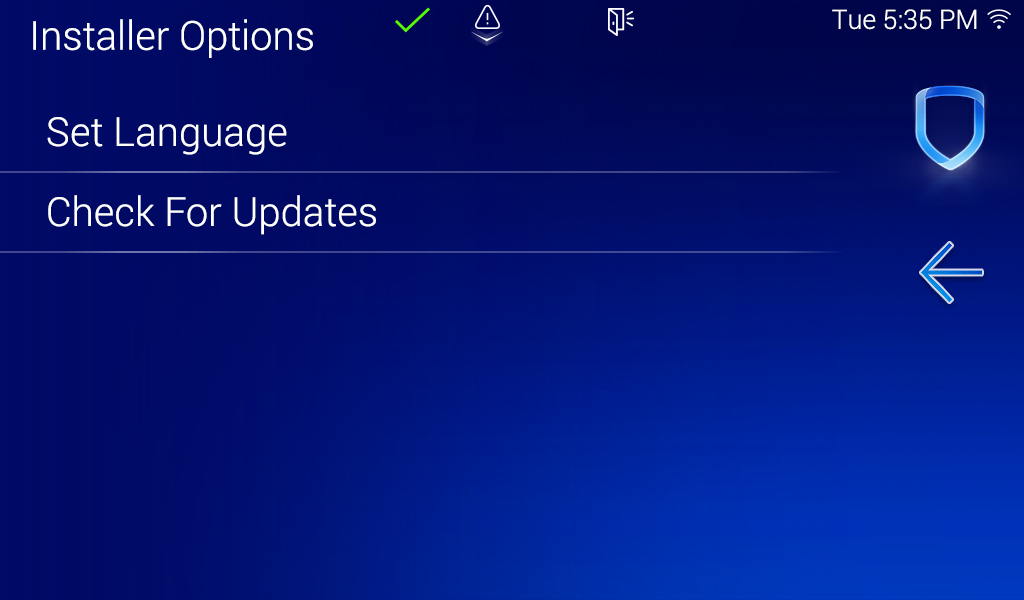

To access the Installer Options menu, press Options in the Carousel menu. Select Installer Options, enter 3577 (INST), then press CMD. This menu includes Panel Communications, Set Panic Button, Keypad Options, Set Carousel Z-Wave Items, Set Carousel Shortcut Items, and Check for Updates.

Panel Communications

Panel Communications is where you can select the communication method for your keypad and enter information referenced during the programming portion of the keypad setup process. Select one of the following options.

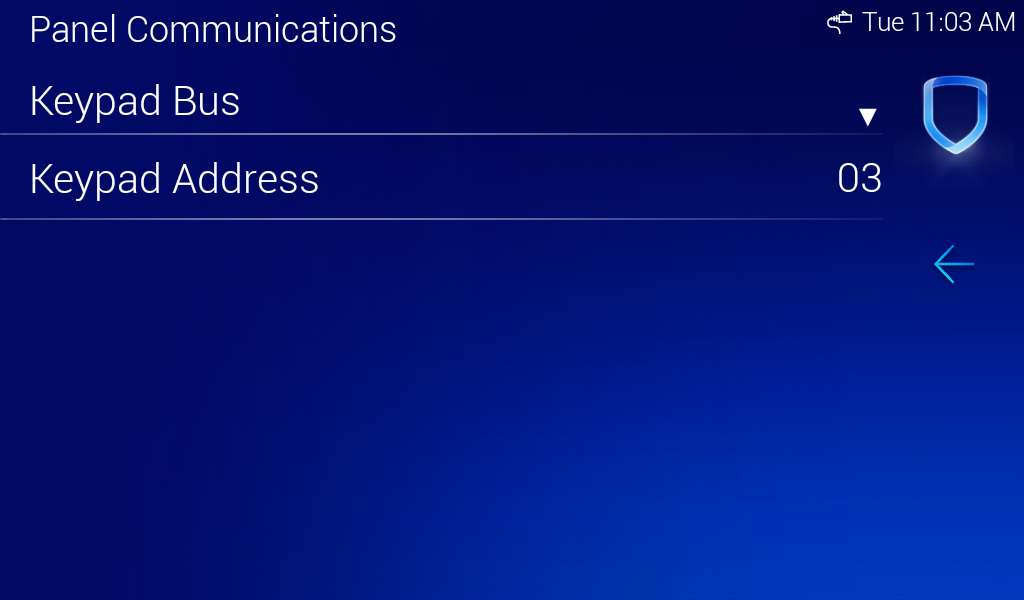

Keypad Bus

Select Keypad Bus to communicate using the keypad bus on the keypad. You can enter the Keypad Address here.

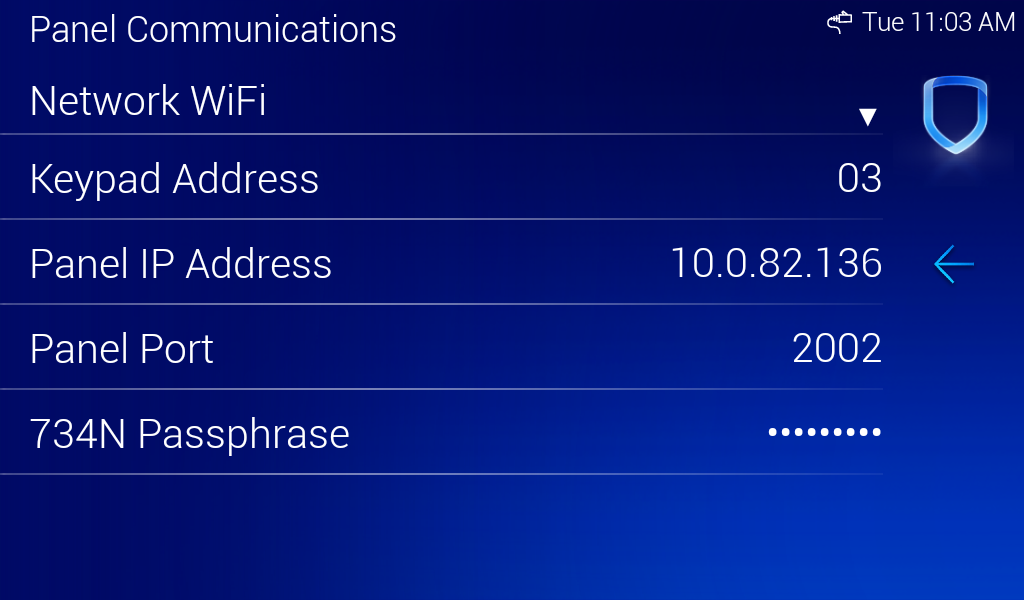

Network Wi-Fi

Select Network Wi-Fi to communicate using Wi-Fi. You can enter the Keypad Address, Panel IP Address, Panel Port, and 734N Passphrase here, as needed.

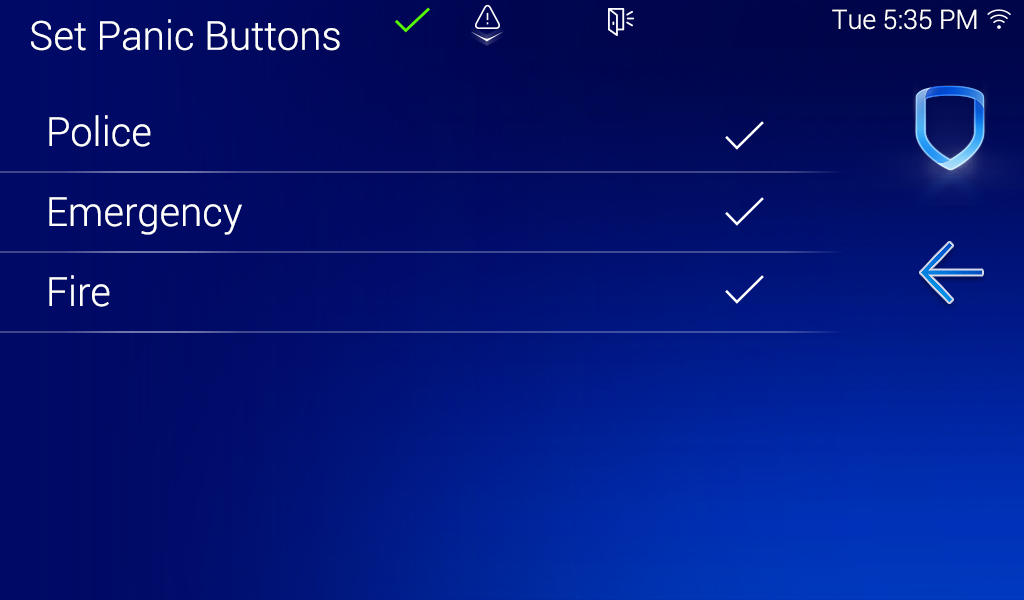

Set Panic Button

Use this option to enable or disable the panic keys. Select the panic buttons you would like to have displayed on the keypad. Once the panic option is enabled, a check mark displays next to the selected options. All options are disabled by default.

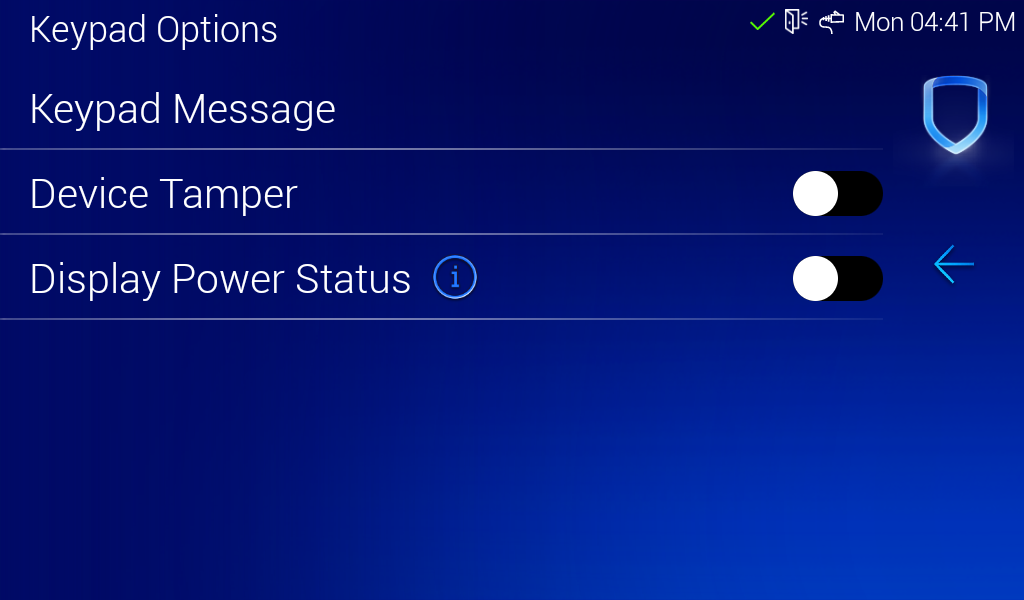

Keypad Options

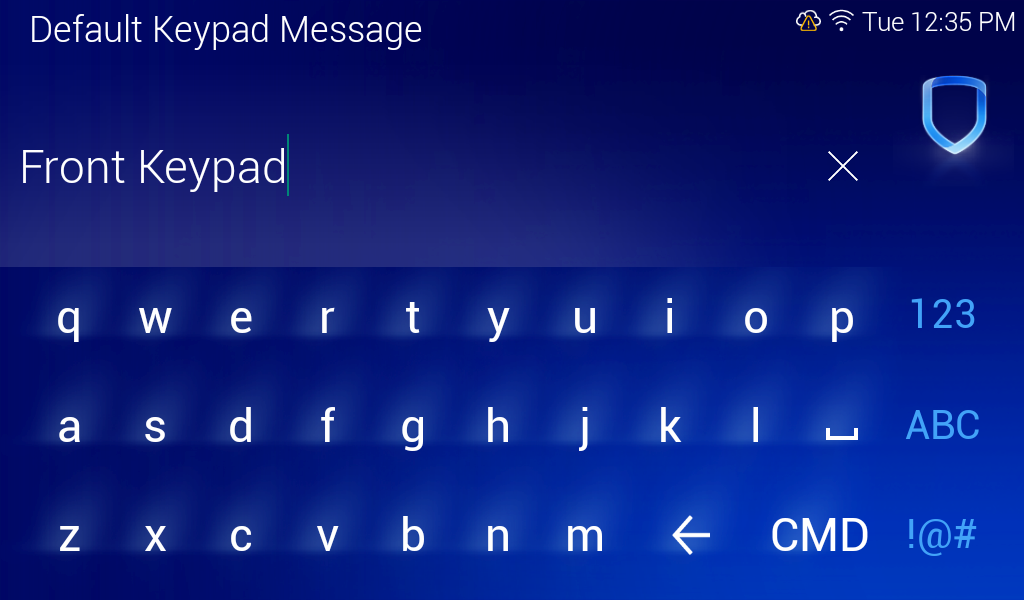

Select Keypad Message to enter a custom message of up to sixteen characters to appear at the top of the keypad display. Press any select area, enter a new message, and press CMD. If a message has been entered, it displays in the field until changed.

Use the Device Tamper toggle to enable or disable the tamper on the back of the keypad. It is recommended to disable this option if the keypad is mounted using the desk stand. Default is ON.

Display Power Status

To enable the No-AC or No-Battery icons, toggle the Display Power Status ON.

If a 7-inch keypad is connected to the panel via keypad bus, it receives the power status from the panel. If it is not connected via the keypad bus, it cannot receive a power status and cannot show the icons.

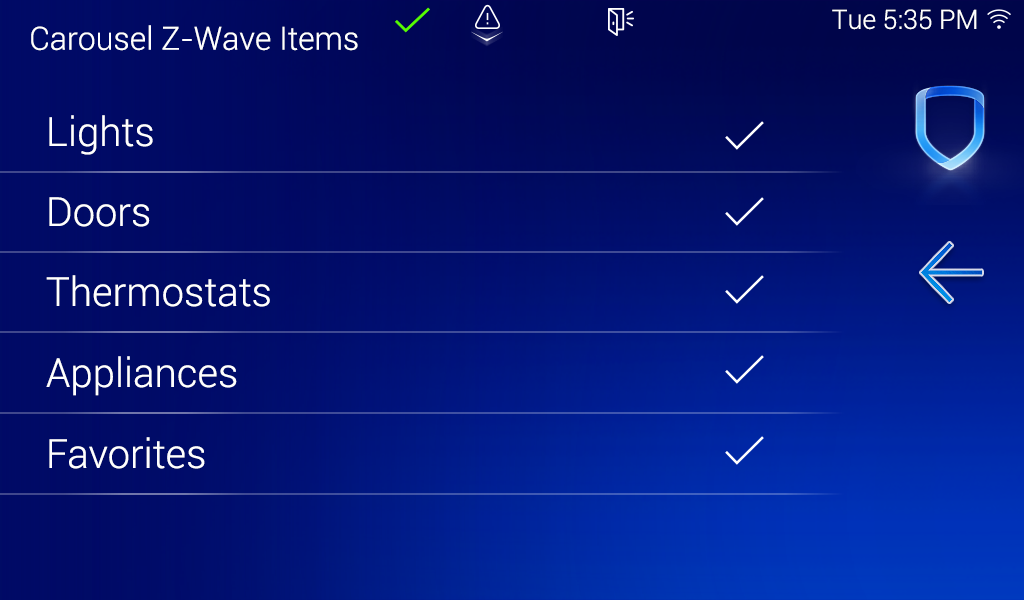

Set Carousel Z-Wave Items

Set Carousel Z-Wave Items allows you to select the Z-Wave device pages you want to display in the Carousel menu.

Select an item to enable it in the Carousel menu, then select it again to remove it from the Carousel menu. Items that are enabled have a checkmark.

Items for the Carousel include Lights, Doors, Thermostats, Appliances, and Favorites. All items are disabled by default.

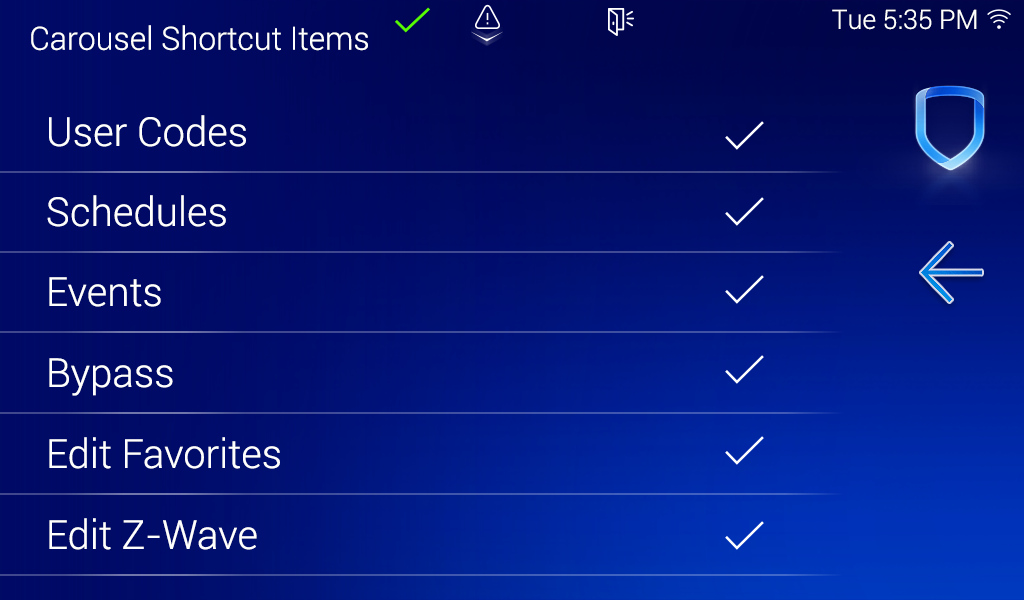

Set Carousel Shortcut Items

Set Carousel Shortcut Items allows you to select additional items to display in the Carousel menu.

Select an item to enable it in the Carousel menu, then select it again to remove it from the Carousel menu. Items that are enabled have a check mark.

Items available to display include User Codes, Schedules, Events, and Bypass. All items are disabled by default.

Select Edit Favorites to display the Edit Z-Wave icon on the Favorites screen.

Select Edit Z-Wave to display the Edit Z-Wave icon for the Lights, Doors, Thermostats, and Appliances screens.

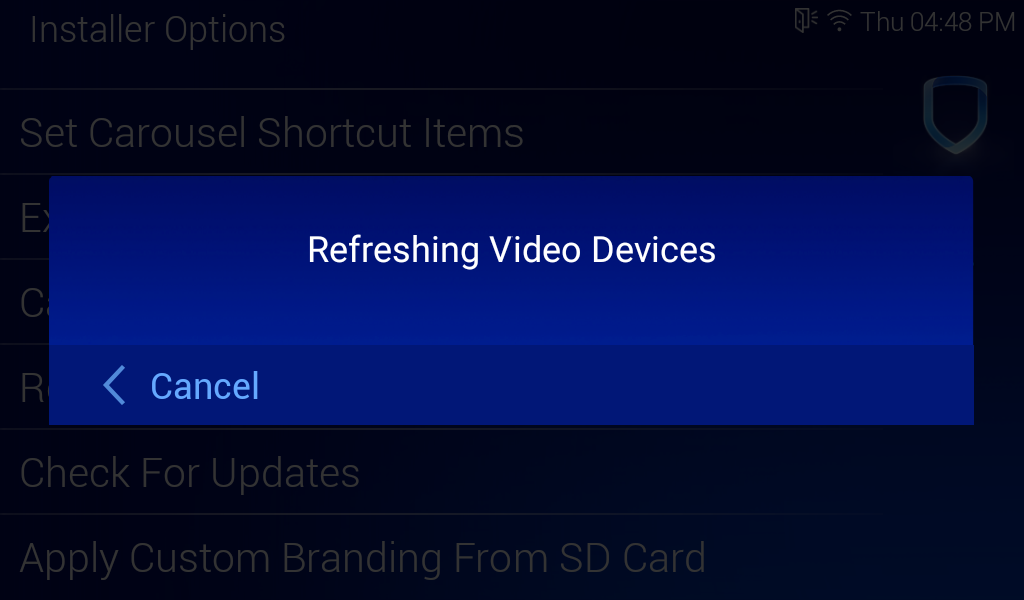

Refresh Video Devices

The keypad usually only retrieves the list of video devices from Dealer Admin when you register the keypad to a panel for the first time or when you reboot the keypad.

This option allows you to manually request that the keypad update the camera and doorbell lists to reflect what devices are enabled in Dealer Admin, showing the most up to date information available.

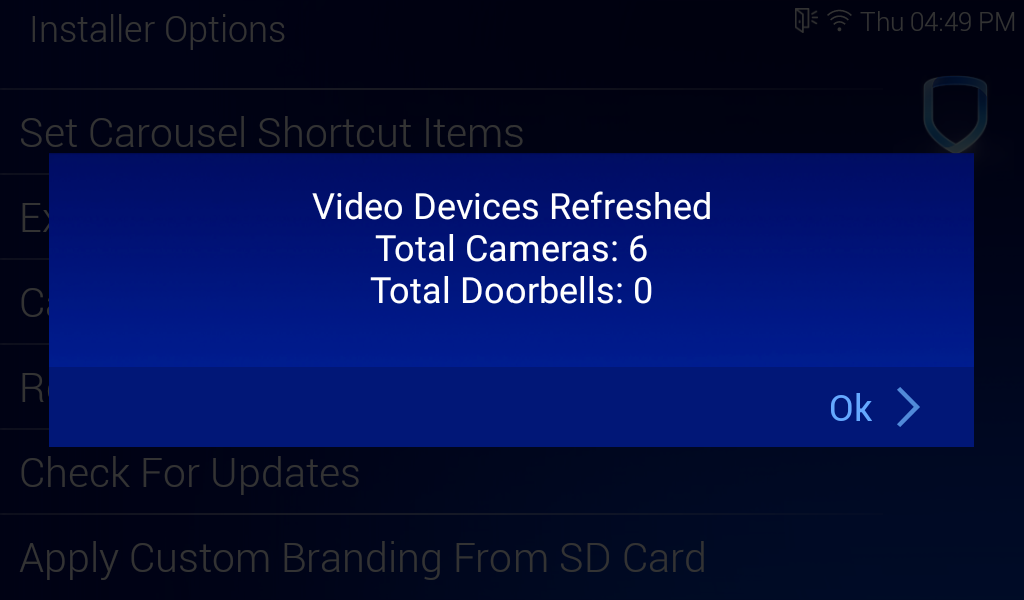

When the refresh is complete, the keypad displays a count of how many total cameras and video doorbells are now available on the keypad.

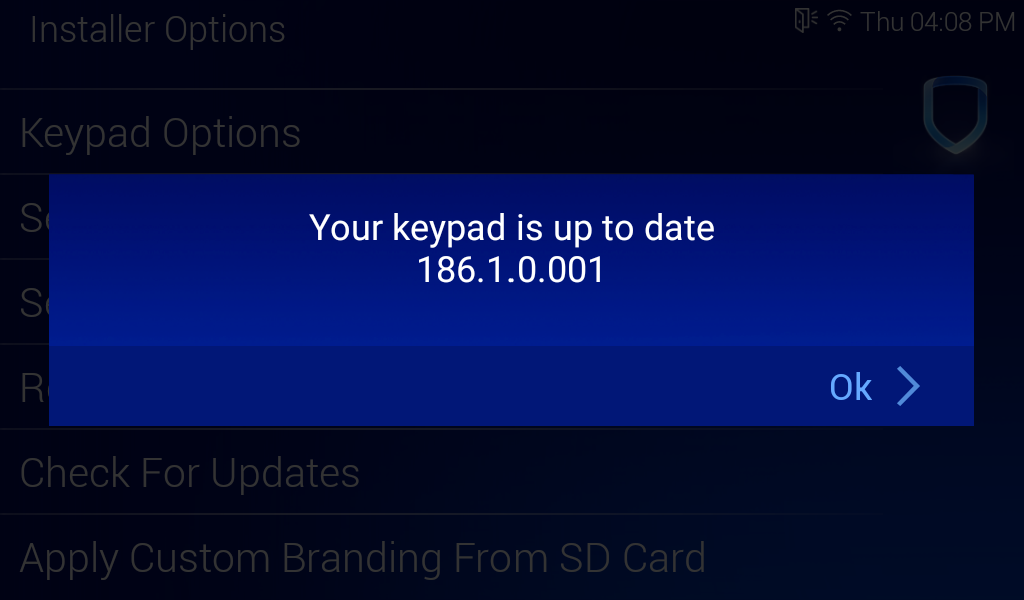

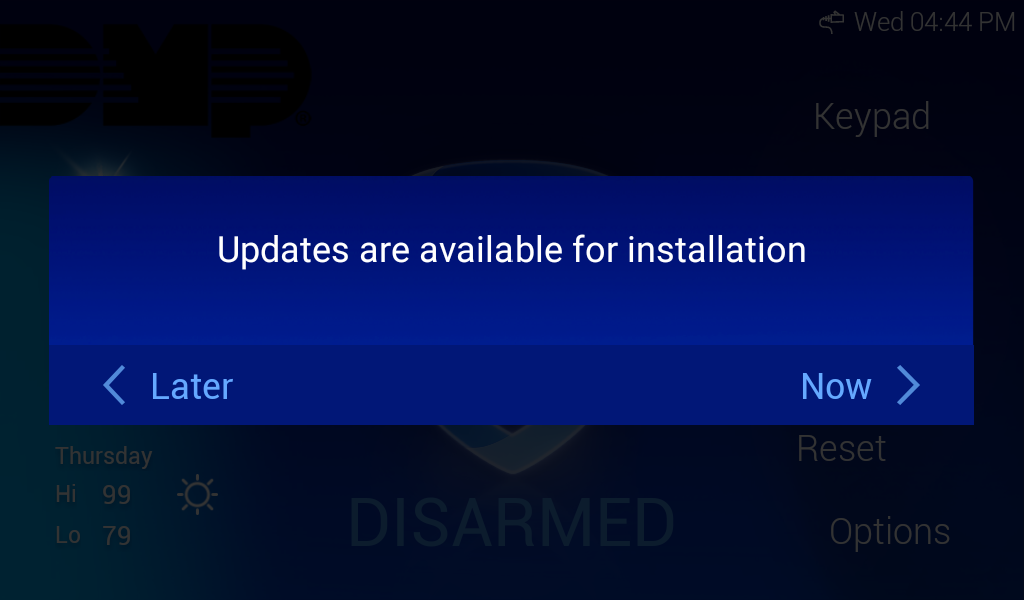

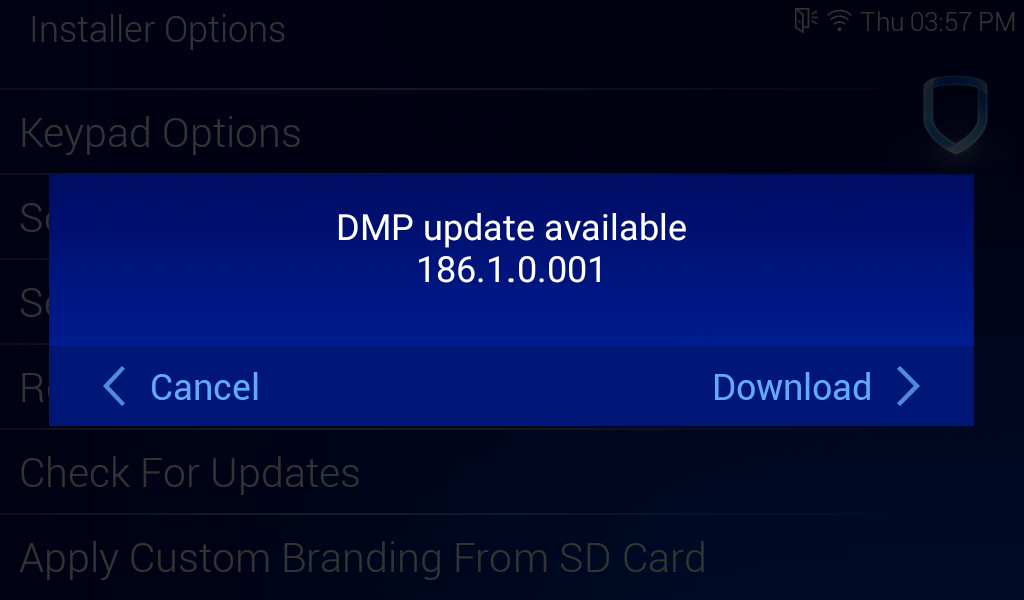

Check for Updates

All models of the 7-Inch Touchscreen Keypad have local and remote update capabilities. The keypad needs to be connected to Wi-Fi to perform a local and remote update. The remote update capabilities can be used for per device updates through Dealer Admin.
