Keypad Bus Communication

Procedure

  1. Check the Panel Firmware

  2. Program the Panel

  3. Power the Keypad

  4. Mount the Keypad

  5. Connect to Network

  6. Program the Keypad

  7. Update the Keypad Firmware

1. Check the Panel Firmware

To use the most up to date keypad features available, ensure your panel has been updated to the latest firmware version.

Need to check your firmware version?

Check Remotely

To find the firmware version for a panel remotely, navigate to Dealer Admin, select Customer, and look at the Version associated with the system.

Check Remotely

To find the firmware version on the panel, select your panel model below.

XR150/XR550

To see the firmware version in an XR150/XR550, complete the following:

  1. Press CMD on the keypad until you see MENU? YES NO. Select YES to access the User Menu.

  2. Enter a valid user code and press CMD.

  3. Press CMD until SYSTEM STATUS? displays. Press any select key or area.

  4. Press CMD to advance through the System Status options until the Firmware Version displays.

  5. To exit, press the Back Arrow.

XT75

To see the firmware version in an XT75, complete the following:

  1. Press CMD on the keypad until you see MENU? YES NO. Select YES to access the User Menu.

  2. Enter a valid user code and press CMD.

  3. Press CMD until SYSTEM STATUS? displays. Press any select key or area.

  4. Press CMD to advance through the System Status options until the Firmware Version displays.

  5. To exit, press the Back Arrow.

XT30/XT50

To see the firmware version in an XT30/XT50, complete the following:

  1. Reset the panel using the RESET jumper.

  2. Enter 2313 (DIAG) in the keypad.

  3. Press CMD to advance through the Diagnostics options until PANEL SETTINGS displays. Press any select key or area to enter.

  4. Press CMD to advance until the Firmware Version displays.

  5. To exit, press the Back Arrow.

Need to update your panel?

Follow the steps below to update your panel firmware remotely from Dealer Admin:

  1. Navigate to Dealer Admin.

  2. Select the customer and system.

  3. In the menu, click System Remote Update.

  4. If you want to view the update details before updating, click the PDF icon next to View Release Notes.

  5. Click Update System. If you go to a different page, the system continues to update in the background.

  6. After the system has updated, the Panel Name, Firmware Version, and Date Code updates at the top of the page.

Select your panel model to view the firmware requirements for specific features.

Note: The XTLplus and XTLtouch do not support Keypad Bus communication.

Feature

Firmware Requirement

  • Network Communication Functionality

  • Firmware Version 231 or higher

  • Voice Annunciation

  • Firmware Version 231 or higher

  • Bluetooth Disarming

  • Firmware Version 231 or higher

Feature

Firmware Requirement

  • Network Communication Functionality

  • Firmware Version 241 or higher

  • Voice Annunciation

  • Firmware Version 241 or higher

  • Bluetooth Disarming

  • Firmware Version 241 or higher

Feature

Firmware Requirement

  • Network Communication Functionality

  • Firmware Version 241 or higher

  • Level G Hardware or higher

  • Voice Annunciation

  • Firmware Version 231 or higher

  • Level G Hardware or higher

  • Bluetooth Disarming

  • Firmware Version 241 or higher

  • Level G Hardware or higher

2. Program the Panel

To allow the control panel to recognize and communicate with the keypad, program the keypad as a device in the panel Programmer Menu.

Need help accessing the Programmer Menu?

  1. Reset the panel by shorting the RESET header.

  2. Press Keypad in the Carousel menu, then enter 6653 (PROG). Press CMD.

  3. Press CMD to advance to the next option in the menu.

  4. To exit the Programmer menu, select CMD to advance through the menu items until you reach STOP at the end of the menu. Select STOP to return to the main screen.

Follow the instructions for your specific panel model below. After completing each of the step, press CMD to advance to the next option. Refer to the panel programming guide as needed.

XR150/XR550

Programming Instructions

Device Setup

DEVICE SETUP
Device Setup

Advance to DEVICE SETUP, then press a select area to enter the setup menu.

DEVICE SETUP
DEVICE NO: -
Device Number

Set the keypad address.

Panel Model

Available Device Number Range
(Keypad Bus)

XR550

1-16

XR150

1-8

DEVICE SETUP
*UNUSED*
Device Name

Enter a name for the device.

DEVICE SETUP
TYPE: KEYPAD
Device Type

Select the KEYPAD device type.

DEVICE SETUP
COMM TYPE: KEYPAD
Communication Type

For use as a standard keypad, select KEYPAD.

XT75

Programming Instructions

Device Setup

DEVICE SETUP
Device Setup

Advance to DEVICE SETUP, then press a select area to enter the setup menu.

DEVICE SETUP
DEVICE NO: -
Device Number

Set the keypad address. The available device number range for XT75 is 1-8.

DEVICE SETUP
*UNUSED*
Device Name

Enter a name for the device.

DEVICE SETUP
TYPE: KEYPAD
Device Type

Select the KEYPAD device type.

DEVICE SETUP
COMM TYPE: KEYPAD
Communication Type

For use as a standard keypad, select KEYPAD.

XT30/XT50

Programming Instructions

Device Setup

DEVICE SETUP
Device Setup

Advance to DEVICE SETUP, then press a select area to enter the setup menu.

DEVICE SETUP
DEVICE NO: -
Device Number

Set the keypad address. The available device number range for an XT30 or XT50 is 1-8.

DEVICE SETUP
*UNUSED*
Device Name

Enter a name for the device.

DEVICE SETUP
DOOR? NO YES
Door Device Type

Select NO at Door Device Type

DEVICE SETUP
NETWORK? NO YES
Communication Type

For use as a standard keypad, select NO.


3. Power the Keypad

Caution: Disconnect all power before wiring. Failure to do so may result in equipment damage or injury. Observe polarity when making power connections.

The keypad receives both power and data from the panel through the keypad bus connection. Using the included 4-wire harness, complete the following steps:

  1. Run 18 or 22‑gauge unshielded wire from the power source to the keypad mounting location. See Keypad Bus Wiring Specifications for maximum wire runs.

  2. Refer to the following table as you connect the wires to the power source:

    • Connect the red wire to panel terminal 7.

    • Connect the yellow wire to panel terminal 8.

    • Connect the green wire to panel terminal 9.

    • Connect the black wire to panel terminal 10.

  3. Plug the power source into an unswitched outlet.

  4. Route the keypad wires through the cutouts in the base. Connect the harness to the PANEL header when accessible during the mounting process. If the harness must be disconnected for mounting, reconnect it after the keypad is secured.

Harness Wire

Terminal

Purpose

Red

Panel Terminal 7

Power (+12 VDC)

Yellow

Panel Terminal 8

Send Data

Green

Panel Terminal 9

Receive Data

Black

Panel Terminal 10

Ground


4. Mount the Keypad

Mount the 8862 using the included mounting plate or an optional desk stand. To learn more about customization of the 7-Inch Touchscreen Keypad and related items available for order, see Ordering Information.

Note: Regardless of method, ensure you remove the protective plastic film from the screen after installation to help ensure proper keypad operation.

Full Mounting Instructions

Determine how the keypad is going to be mounted, then complete the steps for your mounting style:

Wall Mounting

Wall Mounting

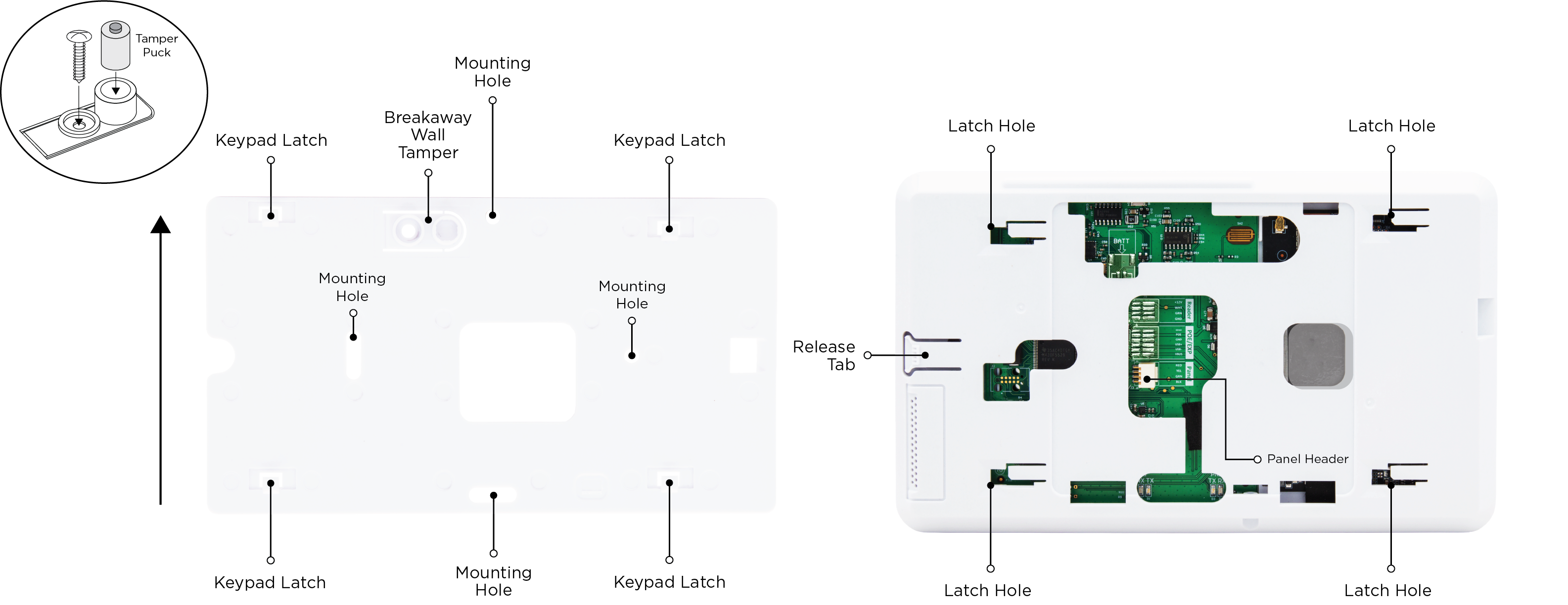

8862 Back and Mounting Plate.png

To mount a keypad using the mounting plate, refer to the figures and complete the following steps:

  1. Place the keypad mounting plate against the wall at standing height to mark the holes for the mounting screws and tamper screw (if necessary). The keypad latches should be facing up.

  2. Set the base aside and drill the holes.

  3. Use the screws included in the hardware pack to secure the keypad mounting plate to the wall.

  4. Plug the 4-wire harness into the keypad PANEL header to connect it to the power source.

  5. Ensure that the latch holes in the back of the keypad line up with the mounting plate keypad latches and that the on-board camera is on the left, then gently press the keypad to the mounting plate. Slide the keypad to the right until you hear the release tab on the side click to secure it onto the mounting plate.

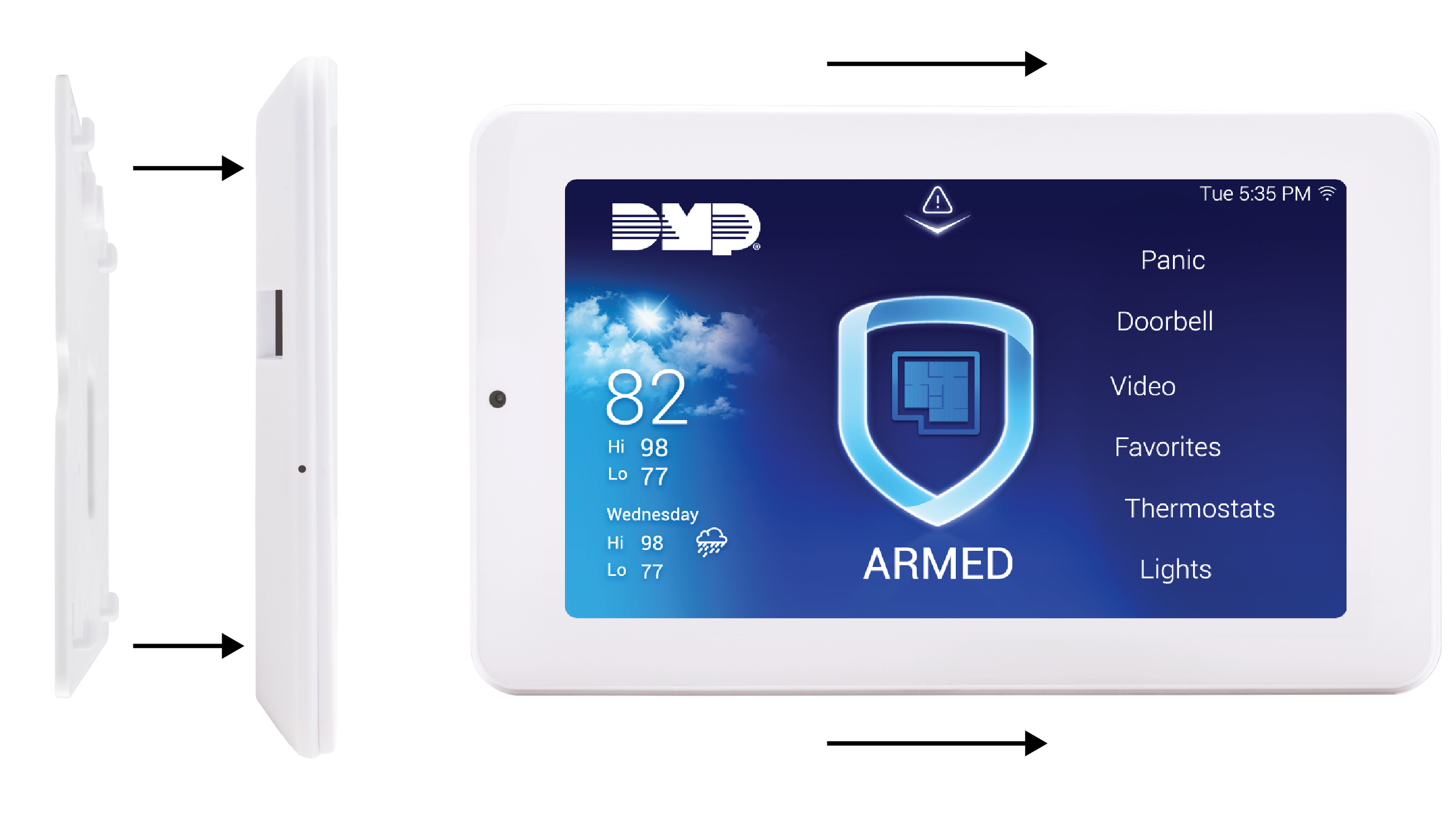

8862 Mounting Plate Install.png
Removal

To remove the keypad from the mounting plate, locate the release tab on the right side of the keypad back and press down. This allows you to slide the keypad to the left and lift it away from the mounting plate.

Warning: Ensure that you slide the keypad to the side before pulling it away from the mounting plate. Failure to do so can result in damage to the keypad or mounting plate.

Desk Stand Mounting

Desk Stand Mounting

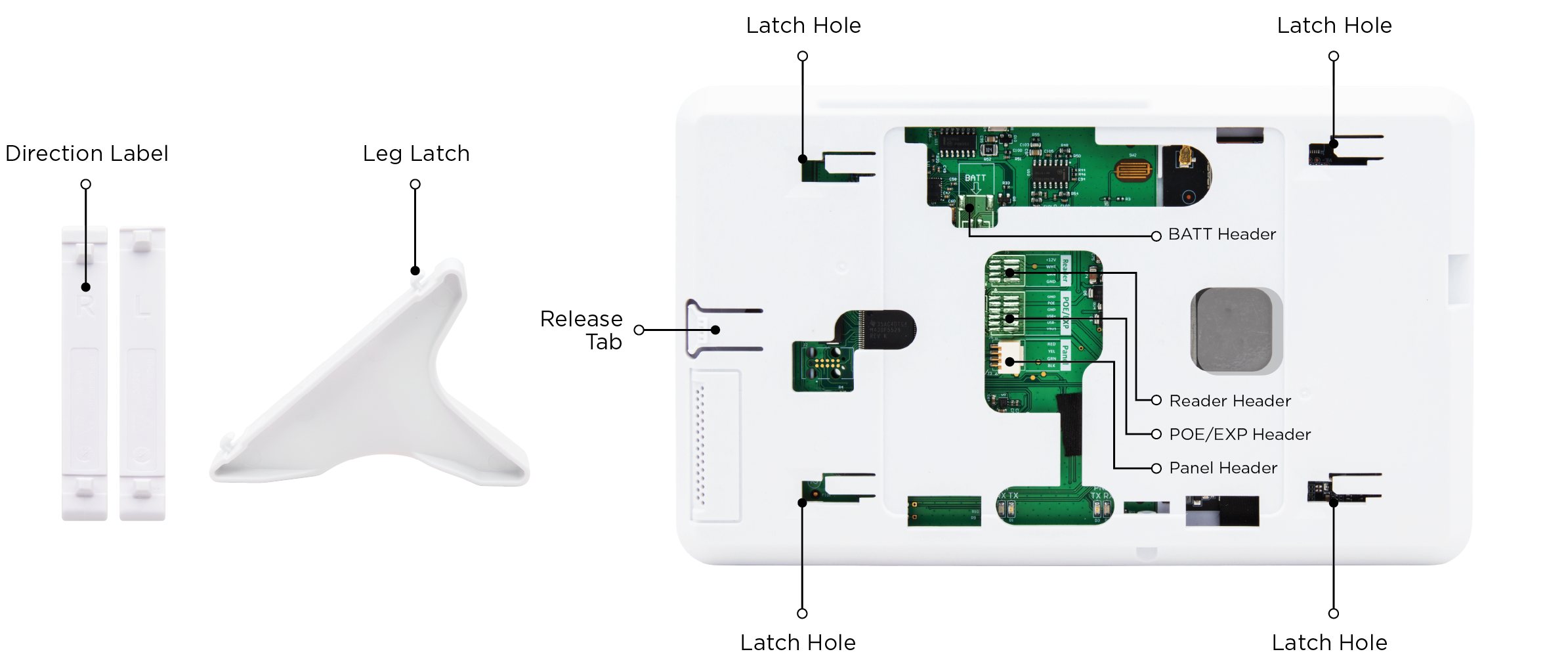

8862 Back and Desk Stand.png

To mount a keypad using the desk stand, refer to the figures and complete the following steps:

  1. Plug the 4-wire harness into the keypad PANEL header to connect it to the power source.

  2. Locate the latch holes on the back of the keypad.

  3. The desk stand legs are labeled L and R based on the keypad's front view and are not interchangeable due to latch spacing. Insert the desk stand leg marked with an L into the holes on the right side of the keypad, then slide it to the side to lock it in place. Repeat with the desk stand leg marked with an R on the left side of the keypad. The clear, non-slip rubber pads should be pointing down.

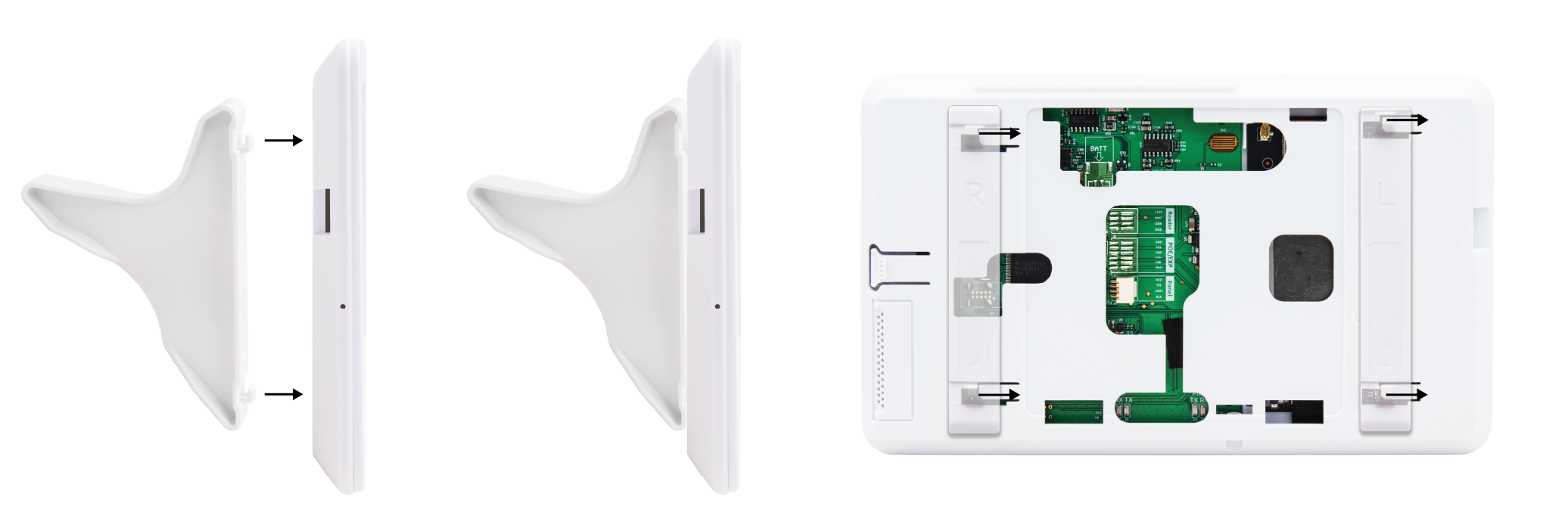

8862 Desk Stand Install.png
Removal

To remove the legs, slide them over and lift them from the holes.

Warning: Ensure that you slide the legs to the side before pulling them away from the keypad. Failure to do so can result in damage to the keypad or desk stand legs.


5. Connect to Network

Connecting the keypad to Wi-Fi provides access to additional 8862 features, including remote updates, video system integration, personalized logos, and image capture when arming and disarming at the keypad. A Wi-Fi connection is recommended for all communication types to ensure access to these enhanced features.

To connect the keypad to Wi-Fi, complete the following:

  1. Select Options from the Carousel menu.

  2. Select Wi-Fi Settings.

  3. Select the Wi-Fi network you would like to connect to.

  4. Enter the password and select CMD.


6. Program the Keypad

Program the keypad to configure the communication settings.

  1. Select Options in the Carousel Menu.

  2. Select Installer Options, enter 3577 (INST), then press CMD.

  3. Select Panel Communications.

  4. Select Keypad Bus.

  5. Enter the Keypad Address. It should match the Device Number set in Program the Panel.


7. Update the Keypad

To use the most up to date keypad features available, connect the keypad to Wi-Fi network and update to the latest firmware version. Follow the instructions for your chosen update method below.

Update the Keypad Locally

Update the Keypad Locally

  1. Select Options from the Carousel menu.

  2. Select Installer Options, enter 3577 (INST) and enter CMD.

  3. Select Check for Updates. Follow the on-screen prompts.

Update the Keypad Remotely

Update the Keypad from Dealer Admin

  1. Ensure the keypad is programmed as a Keypad device in Device Setup.

  2. Navigate to Dealer Admin.

  3. Select the Customer and then select the System.

  4. On the left menu, select System Remote Update.

  5. Click Update next to the keypad.

Note: If the keypad does not show on System Remote Update, ensure it is programmed in Device Setup as a Keypad, not a Door.
