Keypad Basics

This section explains common keypad icons and covers essential user functions, including arming and disarming the system, viewing Arming/Disarming Snapshot Events, configuring Bluetooth Disarming, and properly cleaning the keypad.

Arm and Disarm the System

All of the examples displayed assume that CLOSING CODE is YES in panel programming.




Area System Type

  1. Press and release the shield to open the arming options screen. Select your preferred option.

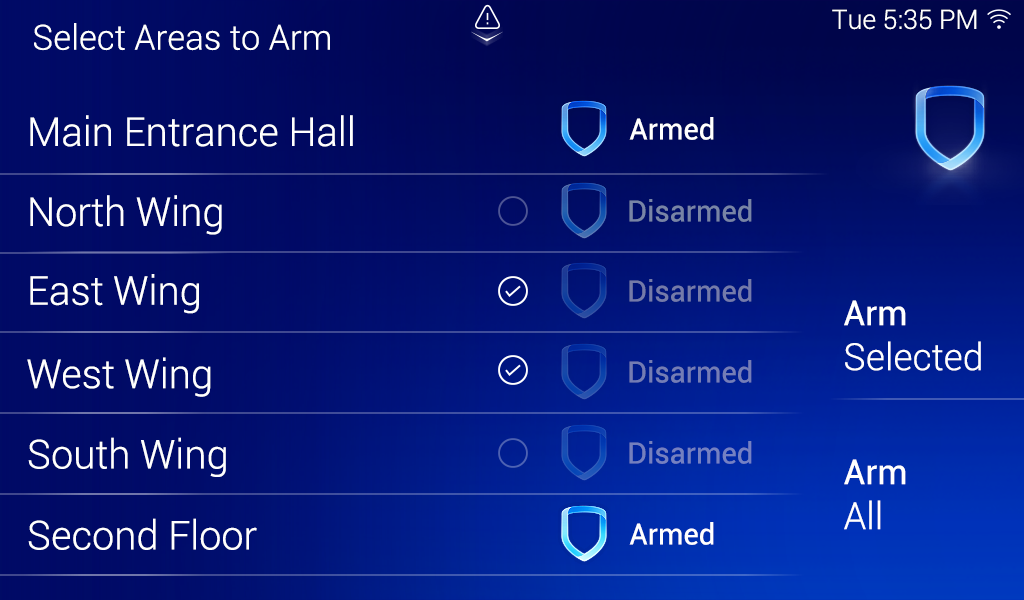

  2. If arming, the keypad displays ENTER CODE. Enter your user code. Select the area name and then select Arm Selected at the right of the screen. To arm all areas, select Arm All at the right of the screen.

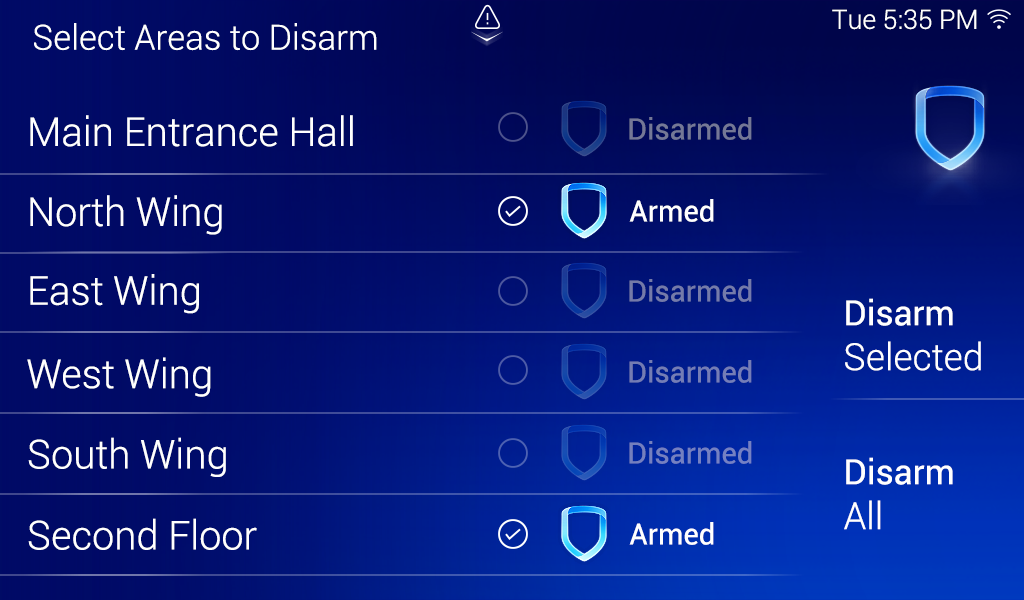

  3. If disarming, the keypad displays ENTER CODE. Enter your user code. Select the area name and then select Disarm Selected at the right of the screen. To disarm all areas, select Disarm All at the right of the screen.




All/Perimeter System Type

  1. Select the home screen shield in the center of the keypad.

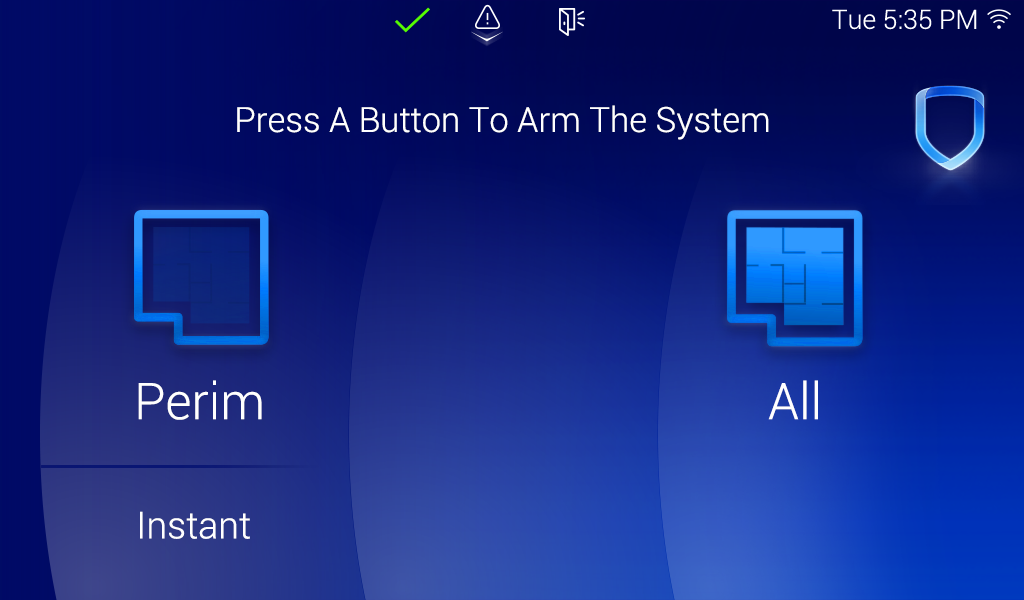

  2. If arming, select ALL to arm all areas or PERIM to arm only the perimeter. If ENTER CODE displays, enter a user code at the keypad.

  3. If disarming, enter a user code at ENTER CODE.




Home/Sleep/Away System Type

  1. Select the home screen shield in the center of the keypad.

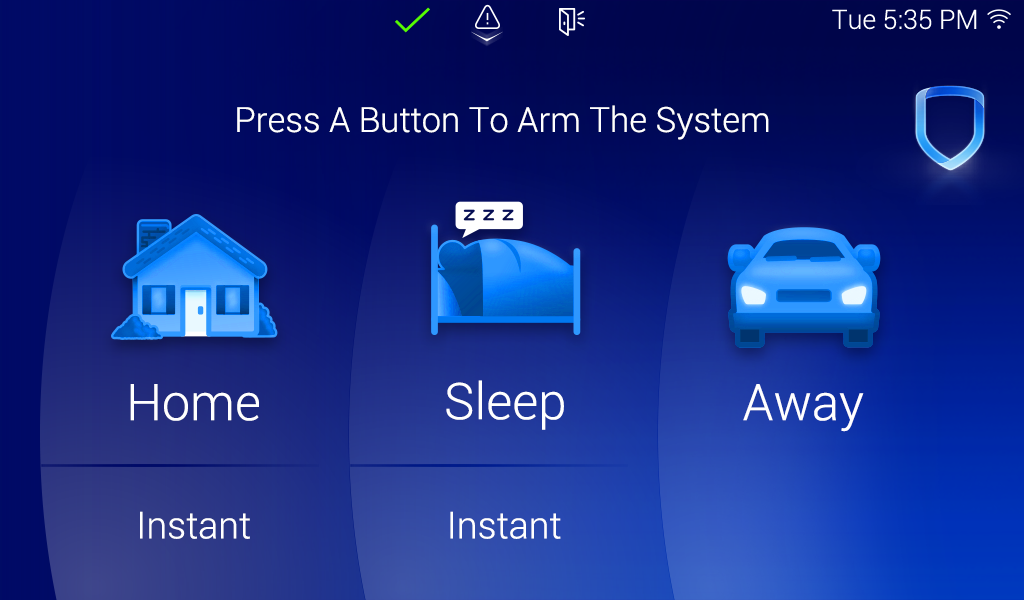

  2. If arming, HOME SLEEP AWAY displays. Select HOME to arm the perimeter, select SLEEP to arm everything except the bedroom areas, or select AWAY to arm all areas.

  3. If ENTER CODE displays, enter a user code at the keypad.



Home/Away System Type

  1. Select the home screen shield in the center of the keypad.

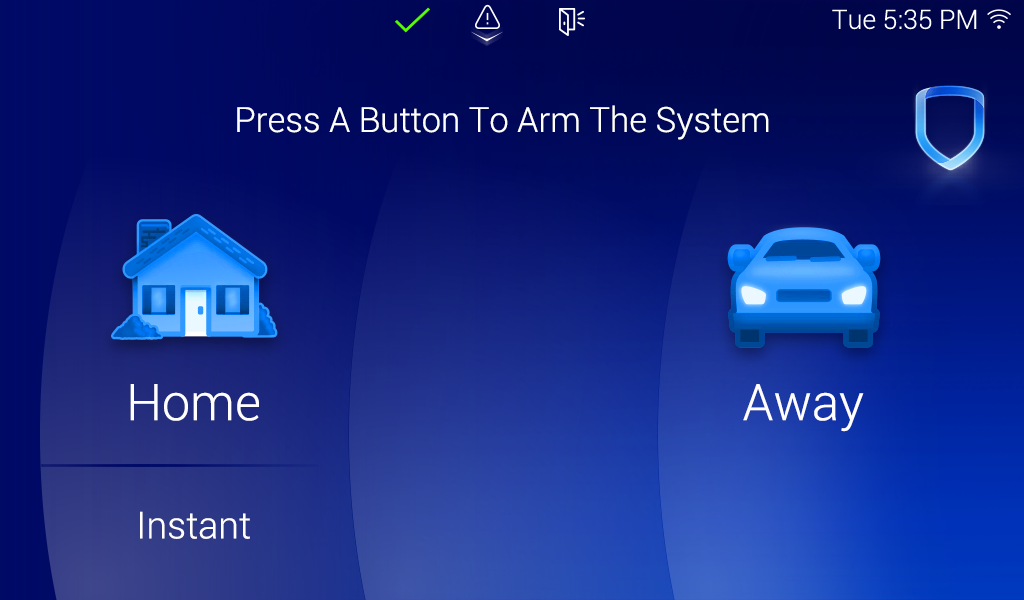

  2. If arming, HOME AWAY displays. Select HOME to arm the perimeter or select AWAY to arm all areas.

  3. If ENTER CODE displays, enter a user code at the keypad.

Icon Key

Note: The colors of the icons below may not match what appears on the keypad screen.

Status Bar

These icons are the ones that you may see appear at the top of your screen and are indications of the status of your keypad.

59_wifi-20240605-205313.png Wi-Fi Status

Indicates real-time Wi-Fi connection status to your keypad.

13_door_chime.png Chime

Indicates that your keypad chime is ON. The keypad sounds an alert and displays a notification when external doors and windows (with sensors installed) are opened.

121_checkmark.png System Ready

Indicates that all zones in the system are in a normal condition and the keypad is ready to be armed.

39_attention.png Attention List

Indicates that there are system conditions that need attention. You can select this icon to view the full list of conditions effecting your keypad.

448_bluetooth.png Bluetooth Connected

Indicates that there is a Bluetooth device paired with the keypad.

255_network.png Ethernet Connected

Indicates that the keypad is currently connected to ethernet.

Cloud Connection

Note: No cloud icon appears if one of the following applies.

  • If your keypad is communicating normally over the connected Wi-Fi/Ethernet network, no cloud icon appears.

  • If your keypad is not connected to a Wi-Fi/Ethernet network, no cloud icon appears.

ic_cloud_no_internet_Black-and-White.png No Internet Communication

This icon appears if your keypad is connected to a Wi-Fi/Ethernet network but cannot send or receive information from the internet.

ic_cloud_not_registered_Black-and-White.png Unregistered on Dealer Admin

This icon appears if your keypad is connected to a Wi-Fi/Ethernet network and can communicate with Dealer Admin, but is not registered with Dealer Admin.

Power Status

You can enable or disable the visibility of the Power Status icons in Installer Options.

If your keypad is connected to the panel via keypad bus, it receives the power status from the panel. If it is not connected via the keypad bus, it cannot receive a power status and cannot show the icons.

ic_no_ac_Black-and-White.png No-AC
Keypad Bus

Indicates that the panel has lost connection to its main power source and is running on a backup battery.

Wireless/Network

Indicates that the keypad has lost connection to its main power source and is running on a backup battery.

ic_battery2_fail_Black-and-White.png No-Battery
Keypad Bus

Indicates that the panel does not have a backup battery available to supply power in the event that the main power source is lost.

Wireless/Network

Indicates that the keypad does not have a backup battery available to supply power in the event that the main power source is lost.

Other Common Icons

222_arming_shield_new_outline.png Home Shield

Select this icon in the top right corner at any time to return to the home screen.

406_dealer_information.png Information

Select this icon to view the Event Information Banner on a Snapshot Event.

27_favorite.png Favorite

Select this icon to activate a pre-determined Favorite.

SeeZ-Wave Devices to learn more.

235_filter.png Filter

Select this icon to filter Snapshot Events by event Type, Camera, or Date.

56_trash.png Trash

Select this icon to forget a Wi-Fi network in Wi-Fi Settings.

70_settings.png Settings

Select this icon to configure the settings for a device or keypad screen.

Arming/Disarming Snapshot Events

Each keypad includes a front-facing, onboard camera that captures a verification snapshot during arming and disarming events. You can view snapshot events in Events on the keypad or in Event History on Virtual Keypad.

  1. In the Carousel menu, select Events.

  2. Select an event to view it.

  3. Swipe left to view the next event or swipe right to view the previous event. Select the Info icon to display the Event Information Banner.

  4. Select the Filter icon to open the Filter Events menu.

  5. In Filter By on the left side of the screen, select a category to filter events by Type, Camera, or Dates.

  6. Select Apply to apply the selected filters to the Events List. A checkmark appears next to each applied filter.

  7. After a filter is applied, a horizontally scrollable banner displays the active filters.

To remove all filters, select Clear at the bottom of the Filter Events menu.

To remove an individual filter, open the Filter Events menu and select the applied filter. The checkmark disappears when the filter is deselected.

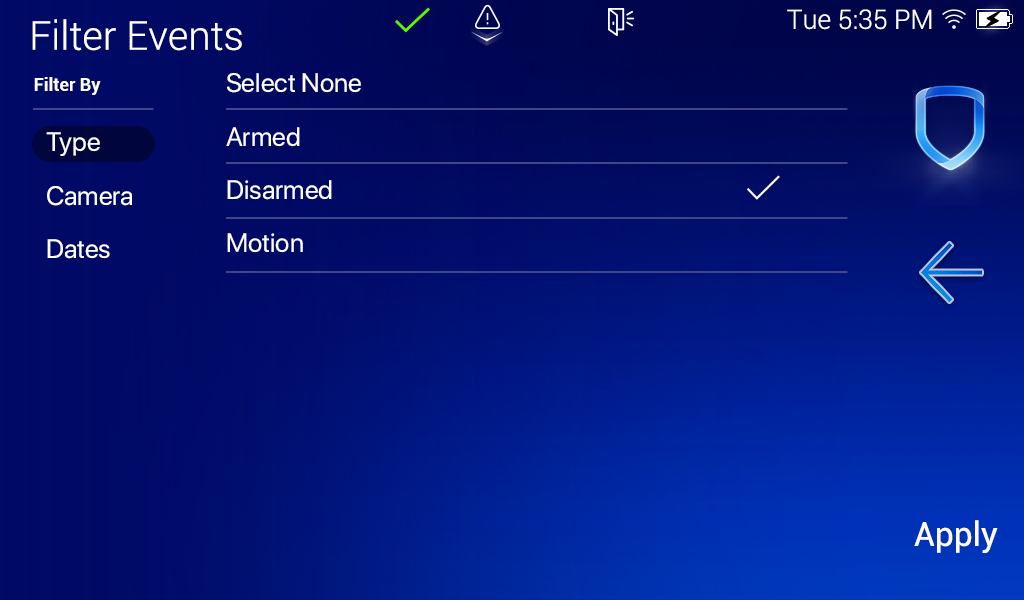

Filter Events (Type).png

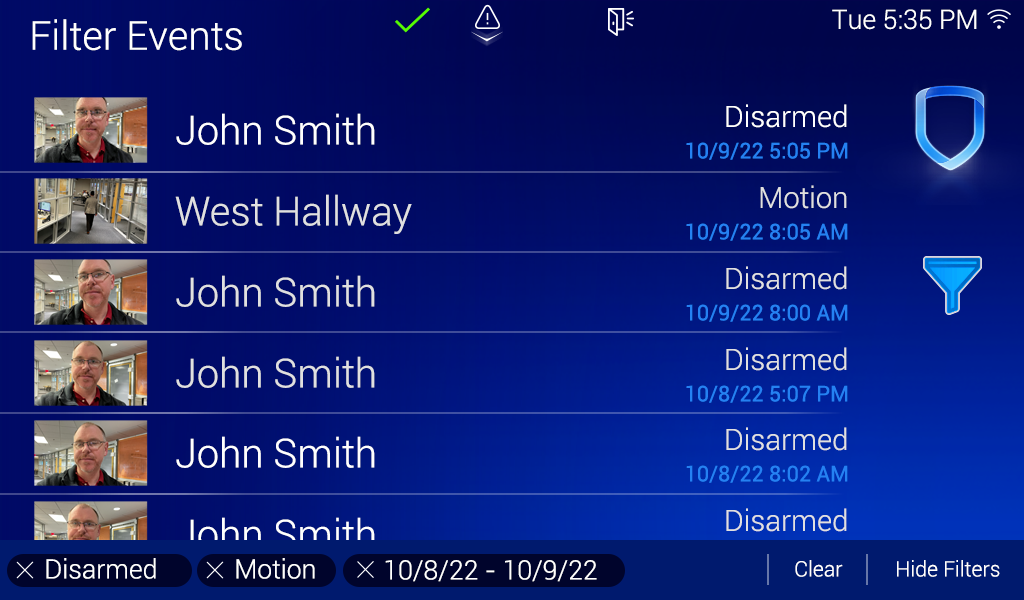

Snapshot Verification Events (List with Active Filters).png

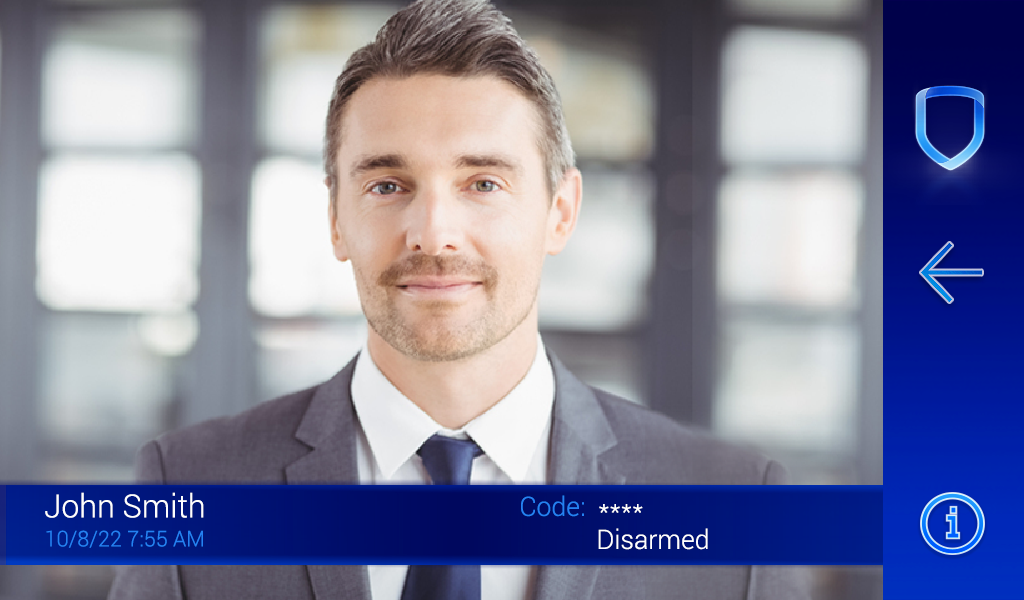

Snapshot Verification Events (Viewing Snapshot).png

Bluetooth Disarming

A device can be paired to the keypad to automatically disarm the system via Bluetooth. When the user trips an exit zone, the entry delay initiates and the keypad begins scanning for Bluetooth devices. If the keypad discovers and connects to a paired device during the entry delay, the system disarms.

For All/Perimeter and Home/Sleep/Away systems, all areas need to be armed. For Area systems, all areas visible in a keypad’s Display Areas need to be armed for it to disarm.

For a user to disarm an Area system, they should either:

  • Have Standard or Master level authority OR

  • Be assigned a profile that allows them to disarm all areas enabled in the keypad’s Display Areas.

This feature is a per keypad operation and up to six devices can be paired with each keypad. To disarm using a single device for multiple keypads, pair the device with each keypad individually.

Complete the following to pair a device with a keypad:

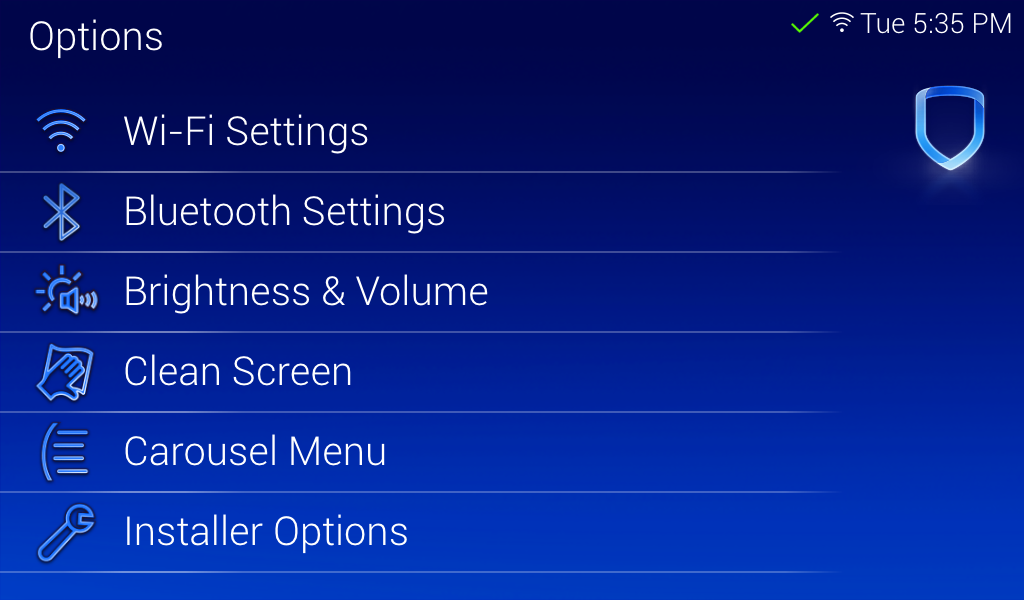

  1. In Options, press Bluetooth Settings.

  2. Enter your User Code. Only Master level user codes can access the Bluetooth Settings menu.

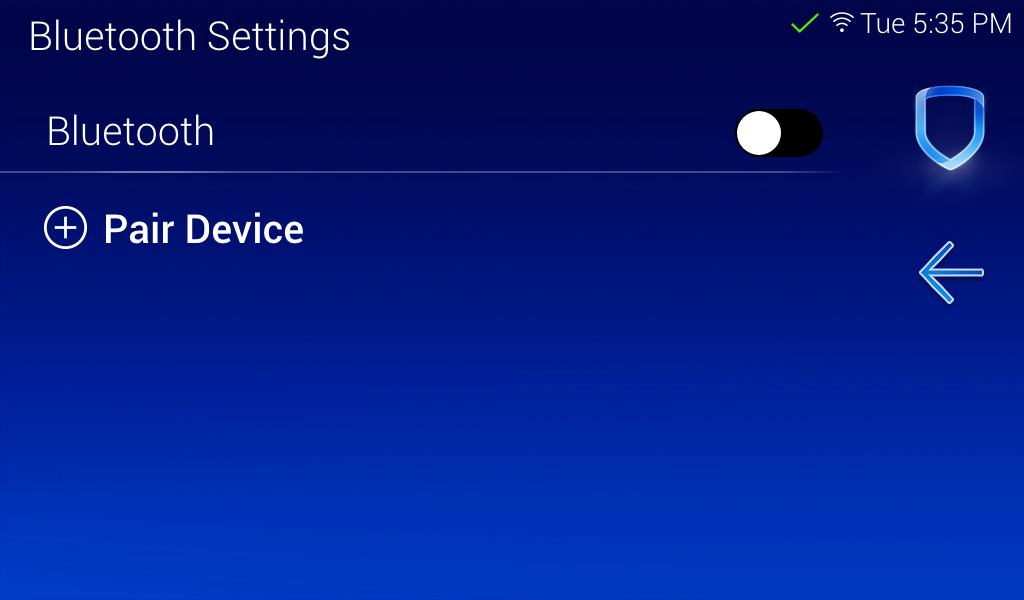

  3. Press the Bluetooth toggle to enable the keypad’s Bluetooth capability.

  4. Ready your device for pairing. It must be actively searching for other devices to pair properly.

  5. Press + Pair Device.

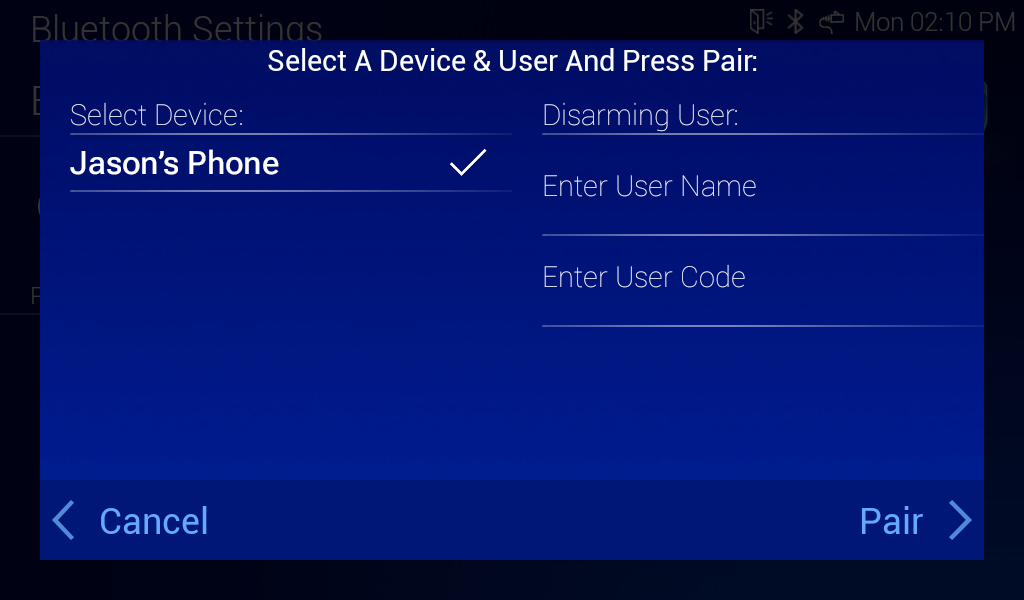

  6. A Select A Device & User and Press Pair pop-up appears. To set the Disarming User, select a device from the list, then enter a User Name and User Code.

Note: Ensure the User Code is already programmed into the panel using Dealer Admin, Remote Link, Virtual Keypad, or the User Menu. The keypad does not validate the user code when pairing the device.

  1. Press Pair in the bottom right corner.

  2. The keypad pop-up displays Pairing. This lasts for up to 20 seconds.

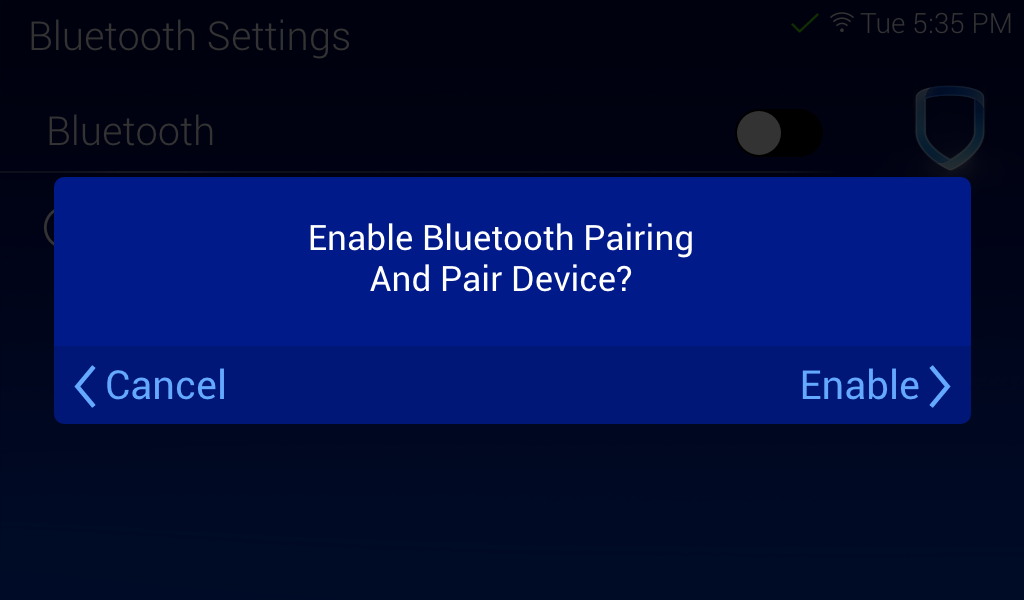

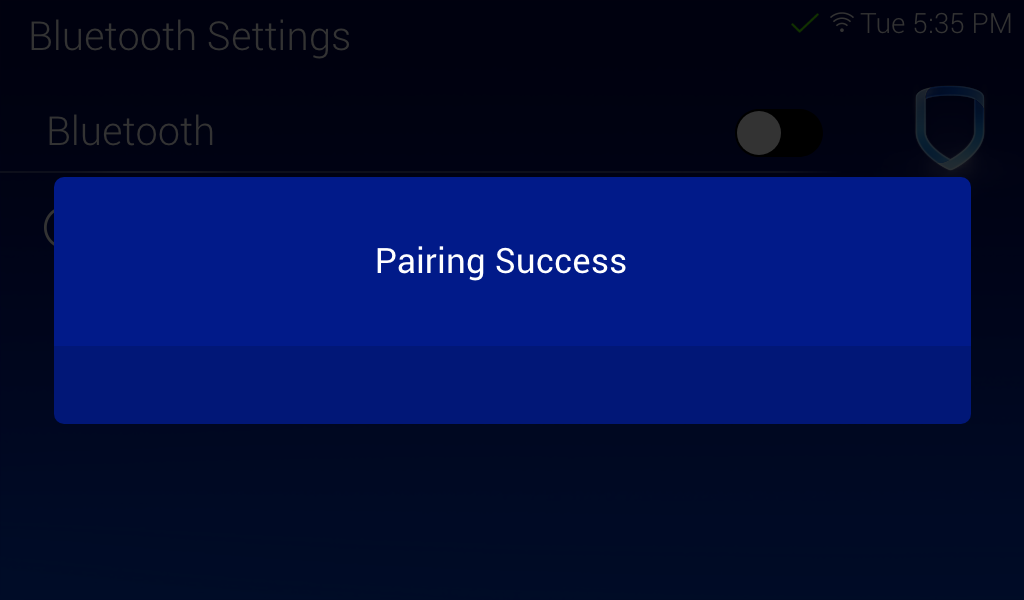

    • If devices were paired, the keypad displays Pairing Success. When the Enable Bluetooth Pairing and Pair Device pop-up displays, press Enable. This brings you back to the Bluetooth Settings menu. The name of the device is be listed under Paired Devices.

    • If devices were not paired, the keypad displays Pairing Failed. Press Retry to pair the devices again. Press Cancel to go back to the Bluetooth Settings menu.

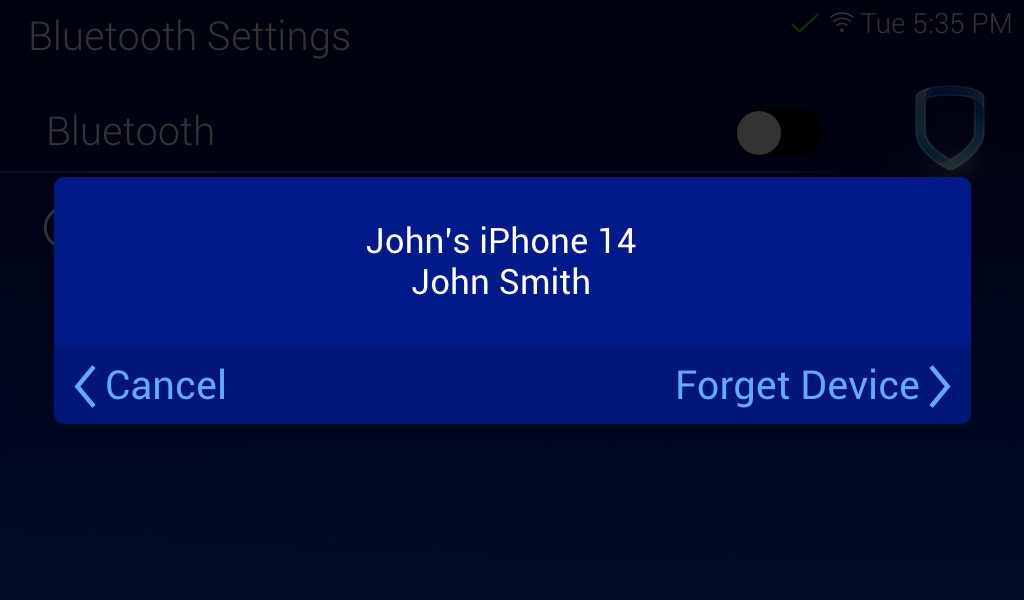

  3. To unpair a device, press the Information icon next to the device name. The keypad displays Forget Device?. Press Forget to unpair the device from the keypad. Press Cancel to go back to the Bluetooth Settings menu.


Options Menu.png
Bluetooth - Bluetooth Settings.png
Select Device and Disarming User.png
Bluetooth - Pairing Popup-1.png
Bluetooth - Pairing Success Momentary 2 Second Popup.png
Bluetooth - Forget Device Popup.png

Ineligible Phones

When arming and exiting the premises, to prevent accidental disarming by forgotten phones, the keypad completes a scan five minutes after the arming sequence to detect valid Bluetooth devices. Any valid phones found are flagged and made ineligible to disarm.

Clean the Keypad

Note: Failure to follow cleaning recommendations may result in equipment damage.

The Clean Screen option locks the screen for 40 seconds so you can clean it without accidentally pressing buttons. Use gentle pressure to clean the display, screen, keys, and housing. Use only alcohol sprays or wipes that contain 70% isopropyl alcohol to clean keypad surfaces. Avoid spraying cleaner directly onto the keypad, oversaturating cleaning cloths, or allowing cleaner to make contact with internal electronic components, cables, or power sources.

  1. In the Carousel menu, select Options.

  2. Select 115_cleaning-20240605-205357.png Clean Screen.

  3. Use an alcohol wipe or spray a small amount of rubbing alcohol onto a clean, dry microfiber cloth to gently wipe down all keypad touch surfaces, removing any excess cleaner.

  4. Wait 10 seconds, then completely dry all keypad surfaces.

  5. If necessary, use a clean, dry microfiber cloth to gently remove streaking.

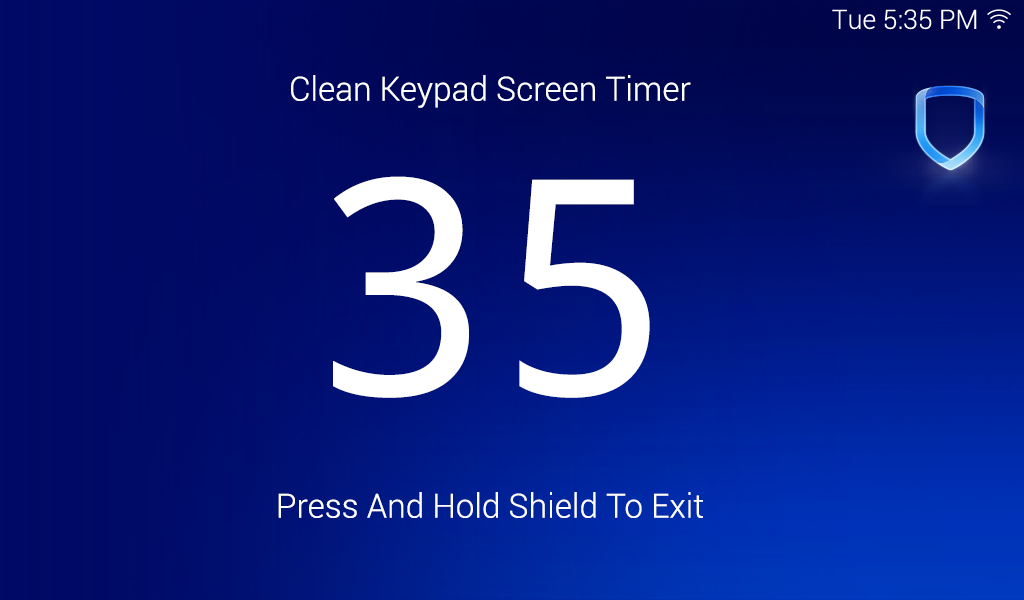

After the countdown timer expires, the keypad returns to normal operation. To exit the countdown early, press and hold the 1_arming_shield-20240605-205313.png Shield icon for 2 seconds.
