8860POE 7-Inch Touchscreen Keypad

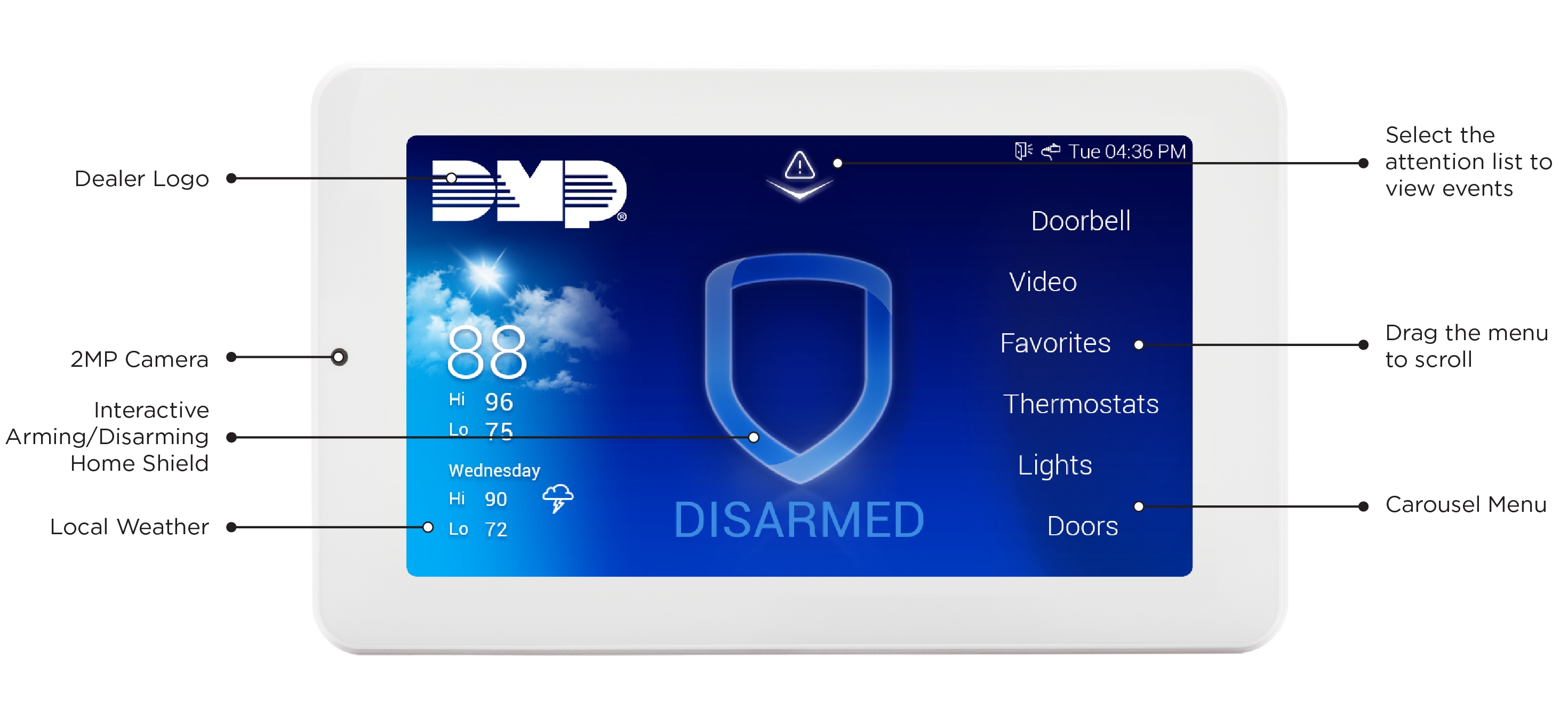

The 8860POE 7-Inch Touchscreen Keypad provides a full-color, capacitive touchscreen interface for managing DMP security systems. Its touchscreen design provides intuitive access to system functions, menus, video features, and connected devices. The keypad includes an on-board 2MP camera, internal speaker, and support for optional panic keys.

The 8860POE can communicate with compatible DMP panels through Wi-Fi, Power over Ethernet (PoE), standard ethernet, or the keypad bus, allowing it to be installed in a variety of system configurations. The keypad includes a six-prong POE header on the back for connecting a PoE adaptor. When connected to a network, the keypad provides access to additional video and system-management features.

Features

• 7-inch touchscreen — Provides a large, full-color, multi-touch display for navigating the security system.

• Built-in audio — Includes an internal speaker for zone annunciation and 2-way audio to cameras and video doorbells.

• Flexible installation options — Can communicate with compatible panels using Wi-Fi, Power over Ethernet (PoE), standard ethernet, or the keypad bus.

• PoE connection — Includes a six-prong POE header for connecting a PoE adaptor.

• Interactive arming and disarming — Provides an intuitive interface for arming and disarming the system and selecting areas or system configurations.

• Video integration — When network-connected, the 8860POE can display live video and video clips from compatible DMP video devices, including VUE video doorbells and cameras.

• Arming/Disarming snapshots — The onboard 2-megapixel camera can capture verification snapshots associated with arming and disarming events.

• Bluetooth disarming — Allows authorized Bluetooth devices to be used for convenient system disarming. Current 8860POE firmware supports up to six Bluetooth disarming devices.

• Z-Wave control — Provides enhanced control of supported Z-Wave devices from the keypad.

• Carousel Menu — Provides quick access to frequently used features and connected devices.

• System status and events — Displays system status, attention events, and other information to help users monitor the security system.

• Remote updates — Network-connected keypads can receive updates remotely through Dealer Admin, helping keep the keypad current without requiring an installer to update each device locally.
