8863 7-Inch Touchscreen Keypad
8863 7-Inch Touchscreen Keypad

8863 7-Inch Touchscreen Keypad

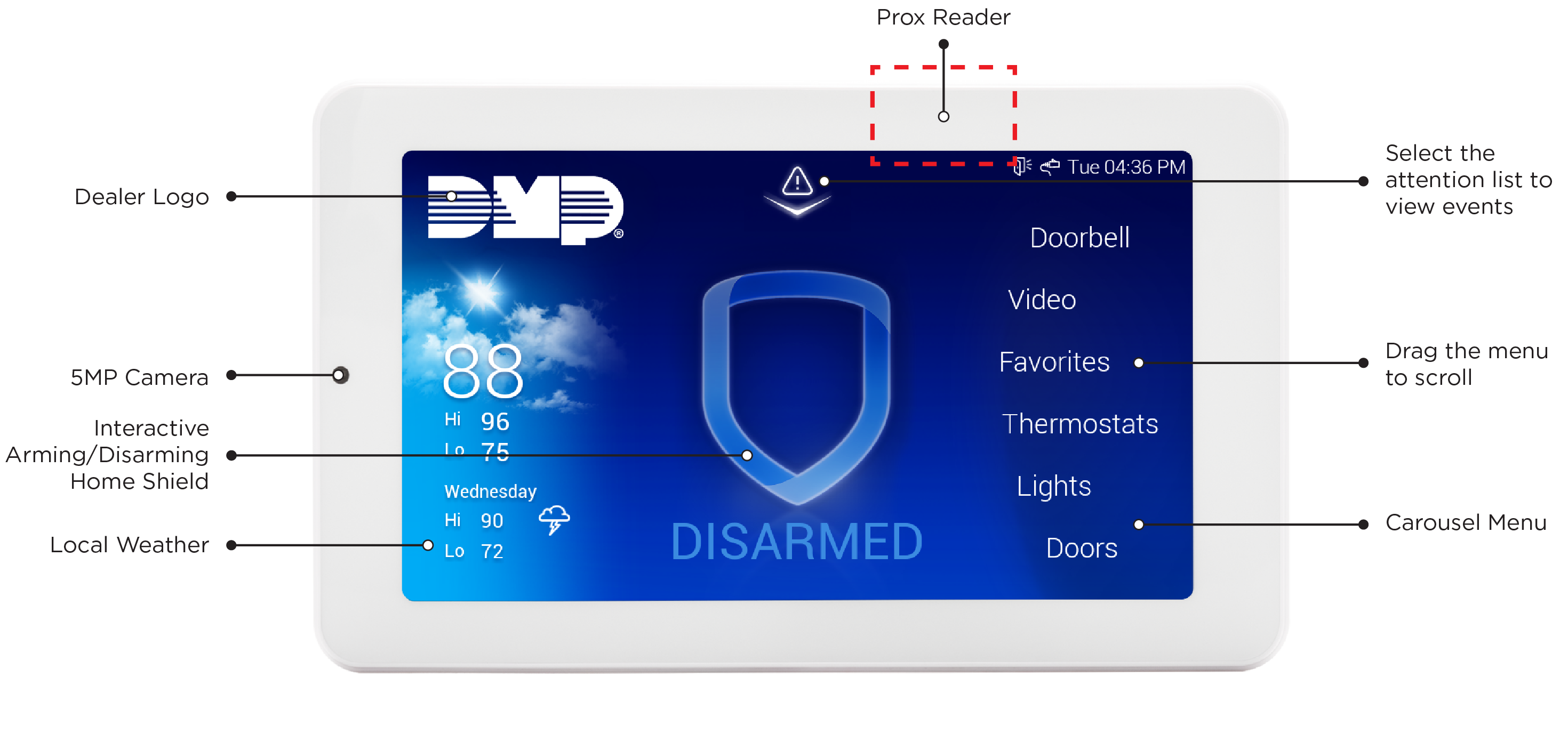

8863 and 8862 Keypad Layout with Prox Range.png

Note: The red box indicates where a credential needs to be placed on the keypad to be validated by the prox reader. An audible beep confirms that the reader has detected the credential.

The 8863 7-Inch Touchscreen Keypad provides a full-color, capacitive touchscreen interface for managing DMP security systems. Its touchscreen design provides intuitive access to system functions, menus, video features, and connected devices. The keypad includes an on-board 5MP camera, optional panic keys, an internal speaker, and an on-board proximity card reader designed to read 125KHz proximity credentials.

The 8863 can communicate with compatible DMP panels through Wi-Fi, Power over Ethernet (PoE), standard ethernet, the keypad bus, or DMP Wireless, allowing it to be installed in a variety of system configurations. When connected to a network, the keypad provides access to additional video and system-management features.

Features

  • 7-inch touchscreen — Provides a large, full-color, multi-touch display for navigating the security system.

  • Built-in audio — Includes an internal speaker for zone annunciation and 2-way audio to cameras and video doorbells.

  • Flexible installation options — Can communicate with compatible panels using Wi-Fi, Power over Ethernet (PoE), standard ethernet, the keypad bus, or DMP Wireless.

  • Built-in Prox reader — Includes an on-board proximity card reader designed to read 125KHz proximity credentials.

  • Interactive arming and disarming — Provides an intuitive interface for arming and disarming the system and selecting areas or system configurations.

  • Video integration — When network-connected, the 8863 can display live video and video clips from compatible DMP video devices, including VUE video doorbells and cameras.

  • Arming/Disarming snapshots — The onboard 5-megapixel camera can capture verification snapshots associated with arming and disarming events.

  • Bluetooth disarming — Allows authorized Bluetooth devices to be used for convenient system disarming. Current 8863 firmware supports up to six Bluetooth disarming devices.

  • Z-Wave control — Provides enhanced control of supported Z-Wave devices from the keypad.

  • Carousel Menu — Provides quick access to frequently used features and connected devices.

  • System status and events — Displays system status, attention events, and other information to help users monitor the security system.

  • Remote updates — Network-connected keypads can receive updates remotely through Dealer Admin, helping keep the keypad current without requiring an installer to update each device locally.
